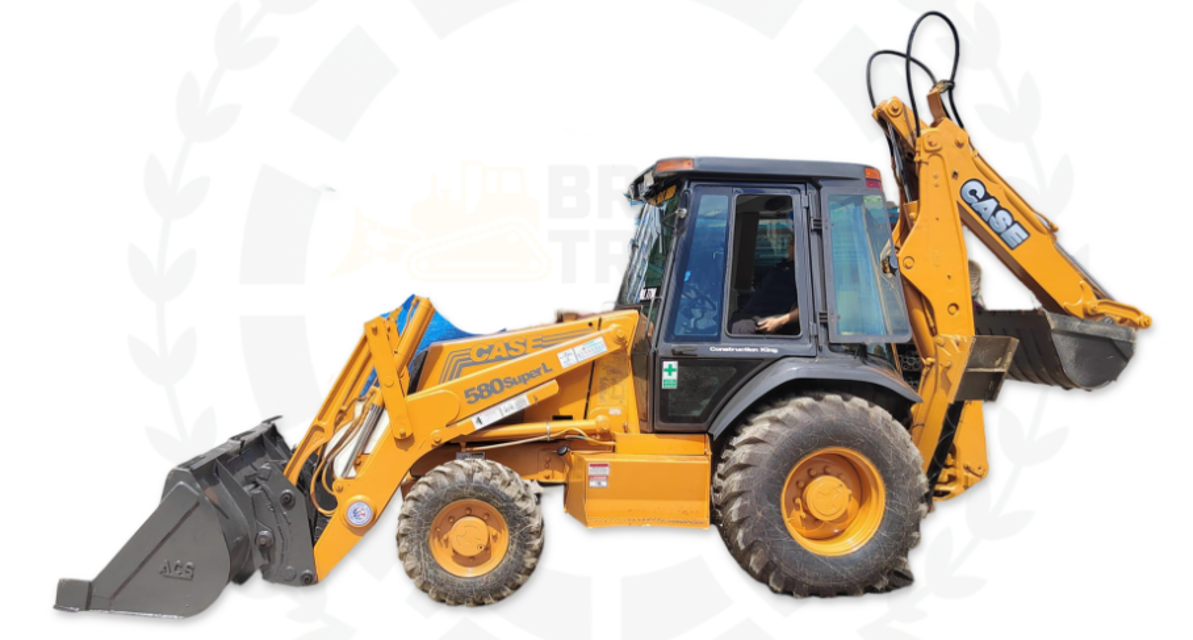

Case Loader Backhoe 580 Super L

Clean Spark Arresting Muffler (If Equipped)

WARNING: The spark arrester is not intended to be used in closed areas where there is dust or vapor that can cause an explosion.

Engine stopped and loader bucket on the ground

Plug removed from the side of the muffler

Replace Hydraulic Filter (See Note 4)

1. Lower the loader bucket to the ground and apply the parking brake.

3. Use a filter wrench and remove the old filter from the machine.

4. Lubricate the gasket on the new filter with clean oil.

5. Install the new filter and turn clockwise until the gasket contacts the head of the filter assembly. Continue to tighten the filter for 1/3 turn.

6. Start the engine and check for leaks at the hydraulic filter.

Change Hydraulic Fluid (See Note 4)

Change the hydraulic fluid every 1000 hours of operation.

Warning: This procedure requires trained personnel with PPE!

Lower the loader bucket to the ground and apply the parking brake.

Use a filter wrench and remove the old filter from the machine.

Lubricate the gasket on the new filter with clean oil.

Install the new filter and turn clockwise until the gasket contacts the head of the filter assembly. Continue to tighten the filter for 1/3 turn.

Start the engine and check for leaks at the hydraulic filter.

Sign off on the hydraulic filter replacement

Grease Extendahoe Dipper Slides

Grease 4 in 1 Bucket Pivot Points

Drain Main Fuel Filter (Drain Water)

Check the coolant level every 50 hours of operation when the coolant is cold and the engine is stopped. The coolant level must be up to the radiator opening.

NOTE: if the radiator coolant level is low and the coolant reservoir level is at the FULL mark, check for air leaks in the hose between the radiator and the coolant reservoir.

Check Hydraulic Reservoir Fluid Level

1. Park the machine on a level surface.

2. Make sure the loader bucket is on the ground and the backhoe is in the transport position. Make sure the bottom of the loader bucket is parallel to the ground. Stop the engine.

WARNING: Exploding tires and/or rim parts can cause injury or death. Keер yourself and others out of the DANGER AREA. Stand on the tread side of the tire. Always use the correct air pressure and follow the instructions in this manual for adding air or servicing the tires.

WARNING: Do NOT weld to wheel or rim when a tire is installed. Welding will cause an explosive air/gas mixture that will be ignited with high temperatures. This can happen to tires inflated or deflated. Removing air or breaking bead is not adequate. Tire MUST be completely removed from the rim prior to welding.

WARNING: Explosive separation of the tire and/or rim parts can cause injury or death. When tire service is necessary, have a qualified tire mechanic service the tire.

Enter the current hours of operation

Enter the current tire air pressure

Sign off on the wheel/tires check
