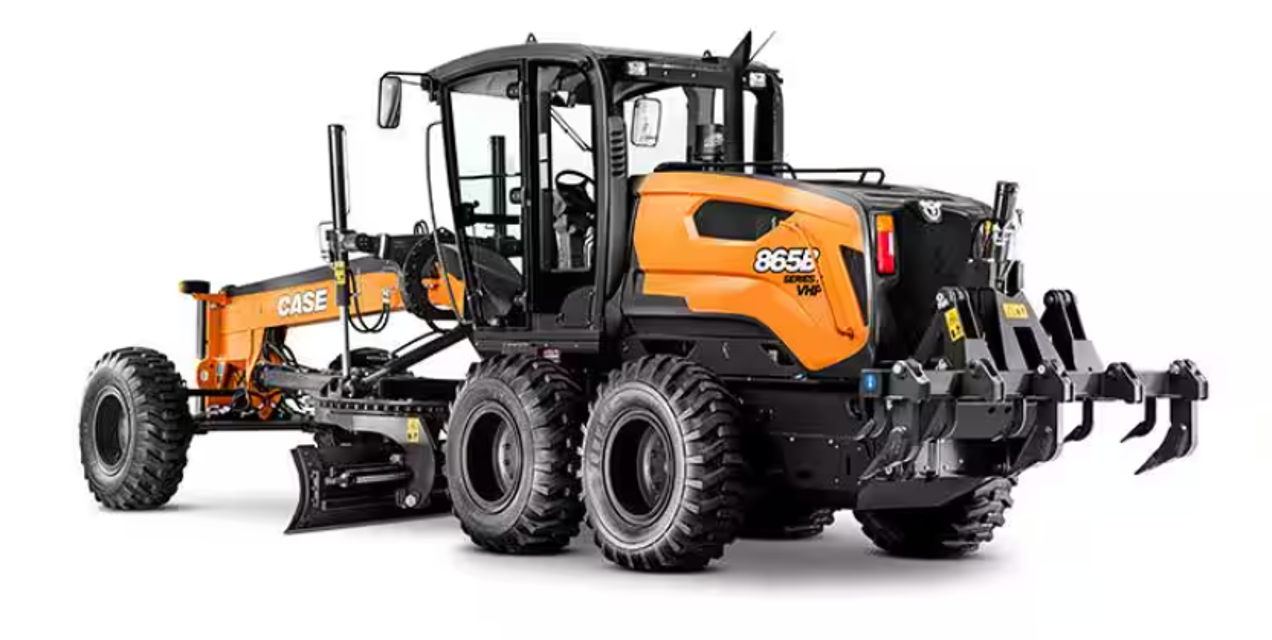

Case Grader 865B VHP
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Case Grader 865B VHP
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Case Grader 865B VHP
Create an account to install this asset package.
Maintenance Plans for Case Grader Model 865B VHP
Integrate maintenance plans directly into your work orders in MaintainX.
As Needed Grader Maintenance
Air cleaner verified (Note 1)
Hydraulic filter verified (Note 2)
Cab Air Filter verified (if equipped)
Batteries cleaned and drained (See Electrical System)
100 Hourly / 15 Daily Grader Maintenance
Lubricate Moldboard Lift Cylinder Pivots
Lubricate Moldboard Lift Cylinders Balls
Lubricate Moldboard Side Shift Cylinders Balls
Lubricate Articulation of Tilt Cylinders
Lubricate Moldboard Tilt Pivots
Lubricate Articulation Cylinders Pivots
Lubricate Articulation Bearings
Lubricate Drawbar Ball and Socket
Sign off on the grader maintenance
1000 Hourly / 6 Monthly Grader Maintenance
Clean- Drain Transmission Screen (FUNK Transmission - 885B models)
Was the transmission screen cleaned and drained successfully?
Replace Transmission Oil (Note 4) (ZF Transmission - 845B / 865B models)
Was the transmission oil replaced successfully?
Replace Transmission Oil (FUNK Transmission - 885B models)
Was the transmission oil replaced successfully?
Adjust Engine Valves Clearance
Were the engine valves clearance adjusted successfully?
Replace Circle Turn Gear Housing Oil
250 Hourly / 1 Monthly Grader Maintenance
Verify Alternator and Air Conditioner Belt
Lubricate Universal Joints and Drive Shaft
Verify Circle Turn Gearbox Oil Level
Replace Differential Lock Oil Filter (if equipped)
Lubricate Front Axle Pivot
Lubricate Front Wheel Lean Bar Pivots
Lubricate Front Wheel Lean Cylinder Pivots
Lubricate Front Wheel Knuckle Lean Pivots
Lubricate Knucle King Pin Bearings
500 Hourly / 3 Monthly Grader Maintenance
Fuel Filters and Water Separator replaced
Fuel Tank Drain Plug cleaned and drained
Hydraulic System Oil Filter replaced
Choose the model
Transmission Oil and Oil Filter replaced (ZF Transmission - 845B / 865B models)
Transmission Oil and Oil Filter replaced (FUNK Transmission - 885B models)
Front Wheel Bearing Grease replaced
Tandem Wheel Shafts Bearings lubricated (Graziano)
Tandem Case Oil Level verified
