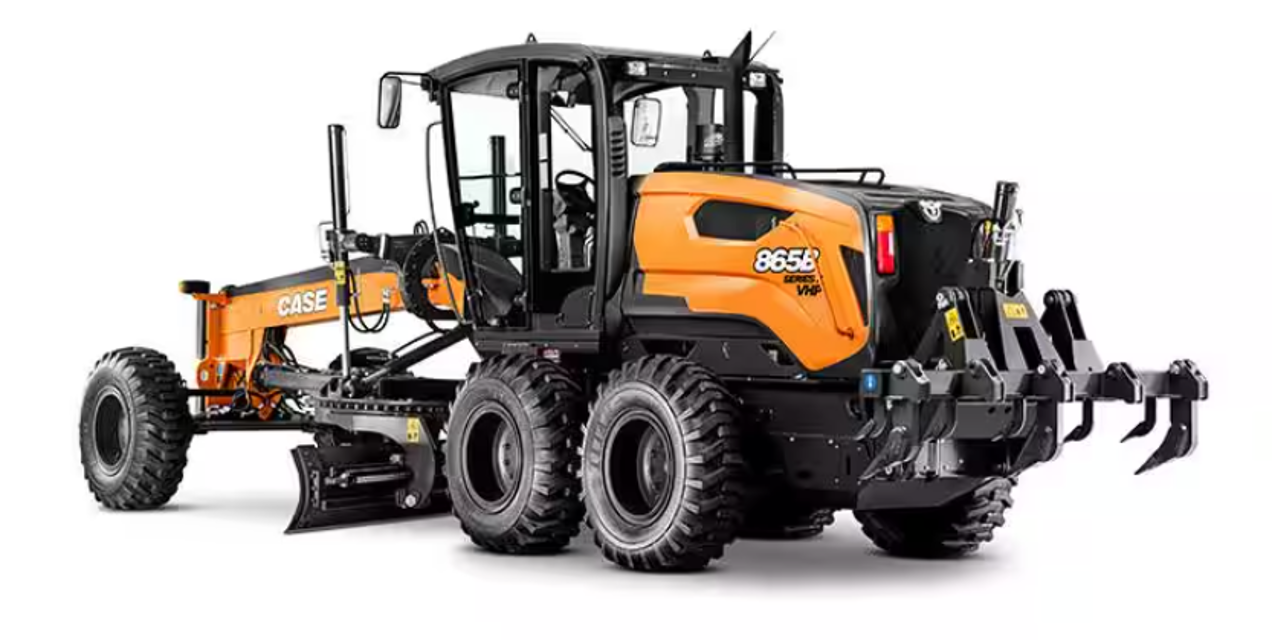

The Case Grader 865B AWD is a robust and versatile grader designed for efficient grading and earthmoving tasks. Known for its advanced features and durability, this model from Case provides exceptional performance in various terrains, making it an ideal choice for construction and maintenance projects.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Case Grader 865B AWD

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Case Grader 865B AWD

Create an account to install this asset package.

Maintenance Plans for Case Grader Model 865B AWD

Integrate maintenance plans directly into your work orders in MaintainX.

50 Hourly / 1 Weekly Grader Maintenance

Clean - Drain Fuel Reservoir Filter (wash screen)

Clean - Drain Fuel Water Separator (drain water)

Verify Hydraulic tank (complete system)

Sign off on the grader maintenance

Run this procedure

500 Hourly / 3 Monthly Grader Maintenance

Fuel Filters and Water Separator replaced

Fuel Tank Drain Plug cleaned and drained

Hydraulic System Oil Filter replaced

Choose the model

Transmission Oil and Oil Filter replaced (ZF Transmission - 845B / 865B models)

Transmission Oil and Oil Filter replaced (FUNK Transmission - 885B models)

Front Wheel Bearing Grease replaced

Tandem Wheel Shafts Bearings lubricated (Graziano)

Tandem Case Oil Level verified

Run this procedure

1000 Hourly / 6 Monthly Grader Maintenance

Clean- Drain Transmission Screen (FUNK Transmission - 885B models)

Replace Transmission Oil (Note 4) (ZF Transmission - 845B / 865B models)

Replace Transmission Oil (FUNK Transmission - 885B models)

Adjust Engine Valves Clearance

Replace Circle Turn Gear Housing Oil

Replace Alternator and Ar Conditioning Belts

Replace Air Cleaner Elements (See Air Cleaner System)

Replace Tandem Case Oil

Sign off on the grader maintenance

Run this procedure

As Needed Grader Maintenance

Air cleaner verified (Note 1)

Hydraulic filter verified (Note 2)

Cab Air Filter verified (if equipped)

Batteries cleaned and drained (See Electrical System)

Run this procedure

2000 Hourly / 1 Yearly Grader Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Rear Axle Differential and Planetary Gear Oil (Graziano) replaced?

Hydraulic System Oil replaced?

Engine Coolant replaced?

Turbocharger Fixing Bolts Torque adjusted?

Sign off on the grader maintenance

Run this procedure
