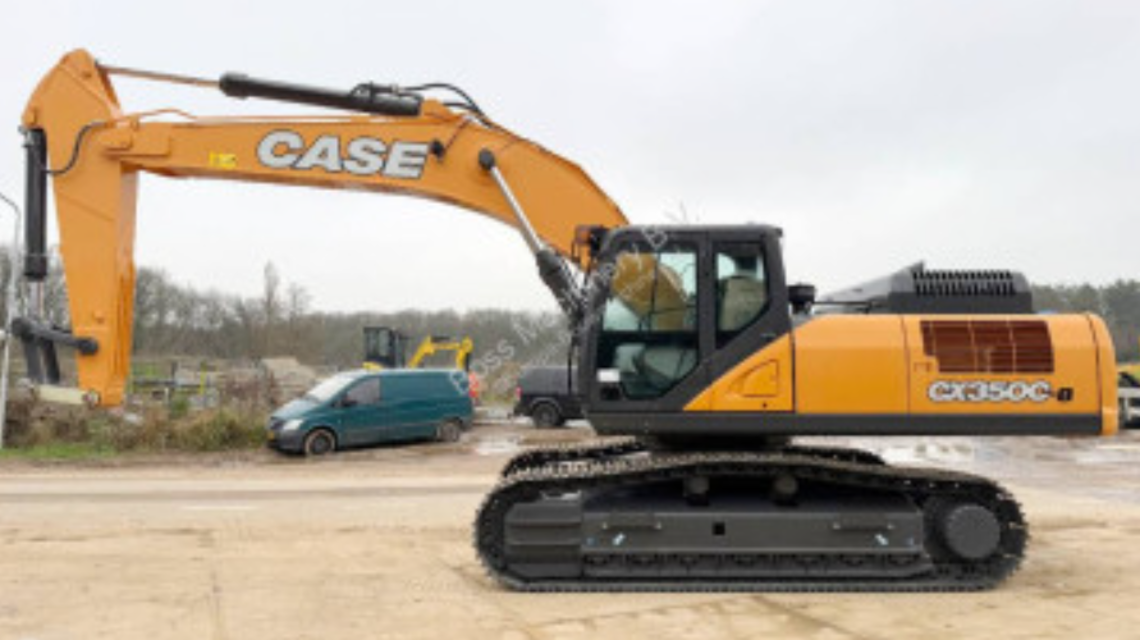

Case Crawler Excavator CX350C

Warning: Use appropriate PPE during cleaning

Cleaning solution meets the standard

Metal parts cleaned with solution

Oil injected into the bearings after drying

Sign off on the cleaning procedure

Drain the coolant from the radiator

Use a wrench [ 13 mm] to remove the 3 bolts (1)

Use a wrench [ 13 mm] to remove the 3 bolts (1), and then remove the bracket (2)

Use a wrench [ 7 mm] to loosen the hose band (1) on the radiator, and then remove the upper hose (2)

Use a wrench [ 7 mm] to loosen the hose band (1) on the radiator, and then remove the lower hose (2)

Warning: This inspection requires trained personnel with PPE!

Are all parts in good condition?

If any parts are not in good condition, replace them.

Upload a photo of the replaced parts

Did the machine pass the post-inspection test?

Sign off on the crawler excavator inspection

For each adjustment operation, select adjusting shims and measure the adjusting shims individually using a micrometer, then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or the rated value shown on each shim.

Lubricate the O-ring seals before you insert them in the seats. This will prevent the O-ring seals from overturning and twisting, which would jeopardize sealing efficiency.

Apply a sealing compound on the mating surfaces when specified by the procedure. Before you apply the sealing compound, prepare the surfaces as directed by the product container.;
