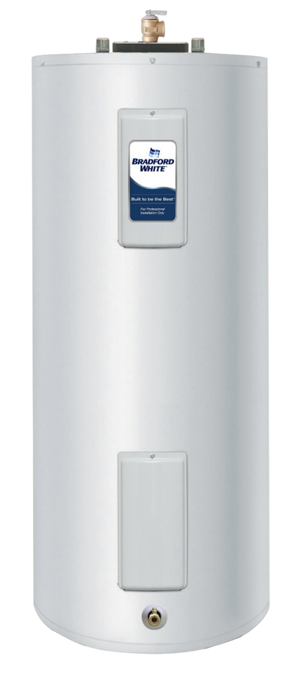

Bradford White Water Heater LE350S3-3

Create an account to install this asset package.

Maintenance Plans for Bradford White Water Heater Model LE350S3-3

Integrate maintenance plans directly into your work orders in MaintainX.

Heating Element Ground Testing

Testing For Heating Element Short Circuit To Ground

Turn off power to water heater

Remove access cover(s) from front of water heater

Remove insulation and plastic cover from thermostat

Disconnect wires from heating element(s)

Set multi-meter to “ohms” setting

Check for reading on ohm meter by touching one probe to screw terminal and the other to element flange

Run this procedure

Non-Simultaneous Three Phase Thermostat Testing

Double Element, Non-Simultaneous, Three Phase Operation

WARNING — High voltage exposure. Use caution to avoid personal injury during this procedure.

WARNING — Be sure thermostats are reset to their original temperature settings as found prior to thermostat testing.

Water In Tank Is Cold With Power ON

Ensure line voltage, ECO, and elements are in working order.

Turn power “ON” to water heater.

Set multi-meter to “Volts AC.”

Check voltage across terminals L4 and T2 of upper thermostat.

Is rated voltage present across terminals L4 and T2?

Run this procedure

Heating Element Replacement

Heating Element Removal and Replacement

Safety Precautions

Heating Element Removal

Turn power OFF to water heater

Turn off cold water supply to heater

Close drain spigot and remove hose

Remove access cover and insulation

Remove plastic thermostat protector from thermostat

Disconnect wires from element terminals

Run this procedure

Non-Simultaneous Single Phase Thermostat Testing

Double Element, Non-Simultaneous, Single Phase Operation

WARNING — High voltage exposure. Use caution to avoid personal injury during this procedure.

WARNING — Be sure thermostats are reset to their original temperature settings as found prior to thermostat testing.

Water In Tank Is Cold With Power ON

Ensure line voltage, ECO, and elements are in working order.

Turn power “ON” to water heater.

Set multi-meter to “Volts AC.”

Check voltage across terminals L4 and T2 of upper thermostat.

Is rated voltage present across terminals L4 and T2?

Run this procedure

Simultaneous Single Phase Thermostat Testing

Double Element, Simultaneous, Single Phase Operation

Ensure safety precautions are in place

Water In Tank Is Cold Or Not Enough Hot Water With Power ON

Verify line voltage, ECO, and elements are in working order

Adjust temperature setting for both thermostats to the highest setting

Turn power “ON” to water heater

Set multi-meter to “Volts AC”

Check voltage across terminals L4 and T2 of upper thermostat

Is rated voltage present across terminals L4 and T2?

Run this procedure
