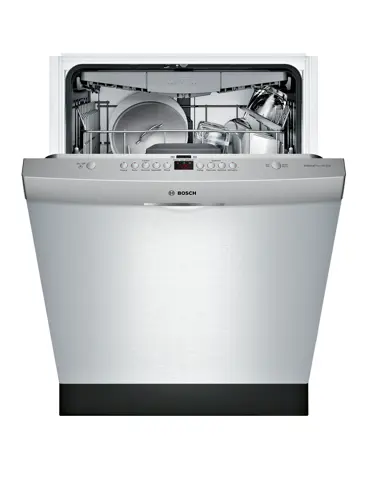

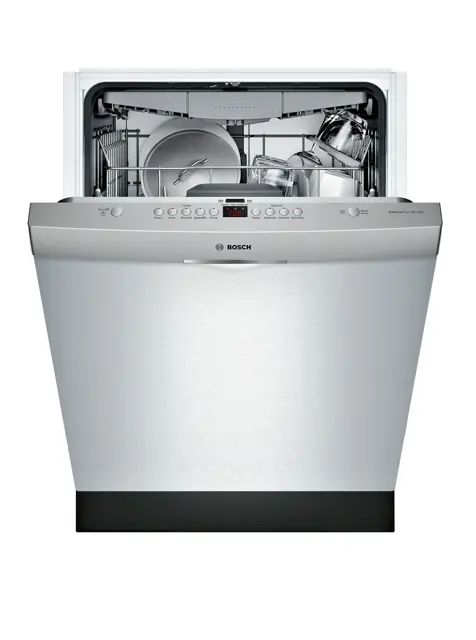

Bosch Dishwasher SHSM4AZ55N

Warning: Use caution when removing parts for cleaning as some debris may be sharp.

Notice: Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any resulting damage.

Warning: Risk of explosion! When cleaning your dishwasher with any cleaning agent, remove all cookware, utensils or any foreign material from inside.

Front of the appliance wiped with a damp cloth and a small amount of liquid soap

Black stainless steel and anti-fingerprint surfaces cleaned with a soft, dry towel

Stainless steel appliances cleaned with a stainless steel polish

Outer edges of the inside door panel cleaned regularly to remove debris

Door seal cleaned regularly with a damp cloth to remove food particles

Rinse aid dispenser is full and functioning properly

Warning: Disconnect the appliance from the power supply before starting the procedure.

Appliance disconnected from power supply?

Scoop out standing water - use a sponge if necessary.

Using a spoon, pry off the pump cover until it clicks, then grip the cover and pull upward until it resists and then pull forward.

Check inner compartment and remove any foreign objects.

Check spray arms for grease and limescale deposits

If deposits are found, follow the steps below

Fill detergent dispenser 92 with detergent and start the appliance without utensils in the cycle with the highest rinsing temperature

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers

Unscrew the upper spray arm and pull off the lower spray arm as shown. Inspect for deposits

Sign off on the spray arms maintenance

Warning: This procedure requires trained personnel with PPE!

Notice food soils remaining on the filter system or objects trapped in the Large Object Trap?

Drop in cleaning performance or a gritty film forms on the dishware?

Frequency of filter cleaning based on usage

Note: Clean the filter after washing loads with large amounts of food soils or loads with a heavy starch content, like potatoes and pasta, to maintain optimal performance.

Unscrew the Large Object Trap and remove the entire filter system?

Remove any residue and clean filters by rinsing under running water?

Note: do not use abrasive brushes or steel wool, etc., as they may damage the filter.

Reinstall the filter system in reverse sequence and lock into place by screwing the Large Object Trap until the marking arrows align?
