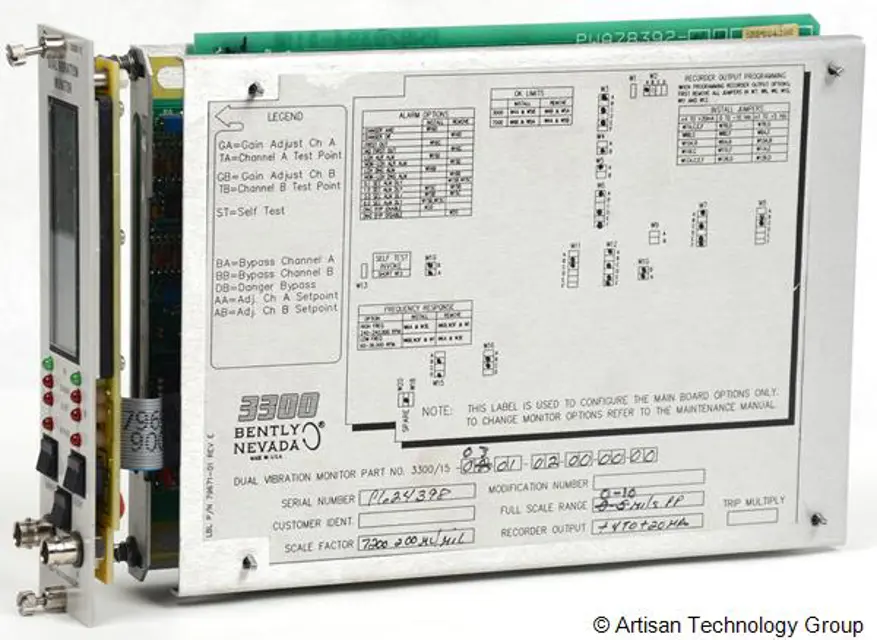

Baker Hughes Dual Vibration Monitor 3300/15-02-01-00-00-00-00

Confirm monitor power is turned on

Check for errors during Power Up Test

If no errors, confirm Timed OK Channel Defeat and resume monitoring in 30 seconds

If errors detected, abort monitoring and resolve the problem

Rerun test via power up or user invoked test if errors were detected

Short across the two Self-Test (ST) pins on the monitor

Acknowledge that machine protection will be lost during the test

Perform power-up self test and recall stored cyclic error codes

Read and clear stored error codes before continuing monitoring

Ensure Timed OK Channel Defeat is active for approximately 30 seconds following the test

Enter the sum of bargraph segments displayed in one column

Step through each error code by pressing and holding ALERT switch for ~1 second

Is the monitor operating normally?

Check if any error is detected during operation.

Abort monitoring if an error is detected.

Flash error code on LCD bargraph display.

Is the OK LED flashing at 5 Hz?
