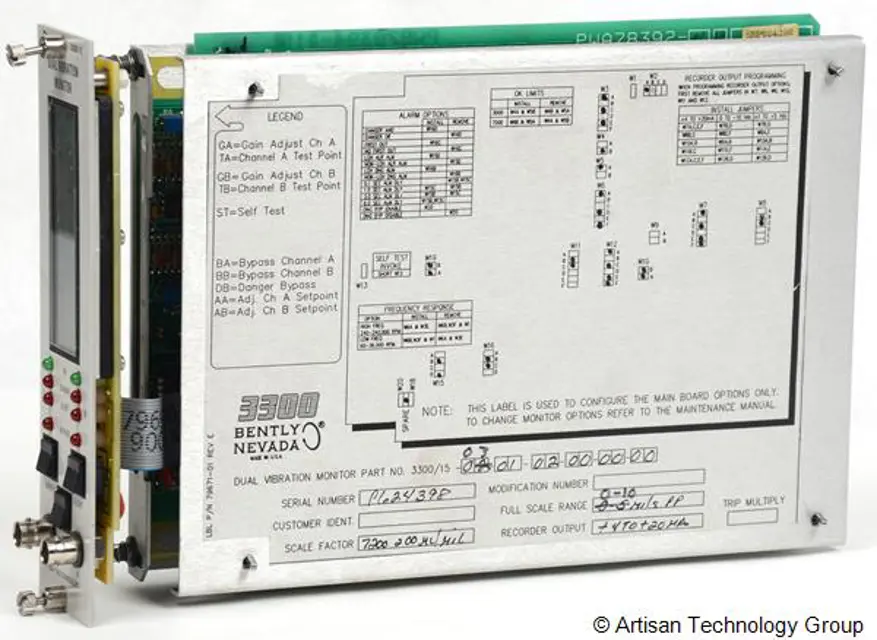

Baker Hughes Dual Vibration Monitor 3300/15-01-01-01-01-01-00

Check if the monitor powers on automatically

Verify transducer OK tests are running

Check for errors during the test

Confirm Timed OK Channel Defeat is performed

Ensure monitoring resumes in 30 seconds

Is the monitor operating normally?

Check if any error is detected during operation.

Abort monitoring if an error is detected.

Display error code on LCD bargraph.

Is the BYPASS LED on and OK LED flashing at 5 Hz?

Short across the two Self-Test (ST) pins on the monitor

Acknowledge that machine protection will be lost during the test

Recall stored cyclic error codes

Read the error code from the bargraph segments

Press and hold ALERT switch for ~1 second to step through each error code
