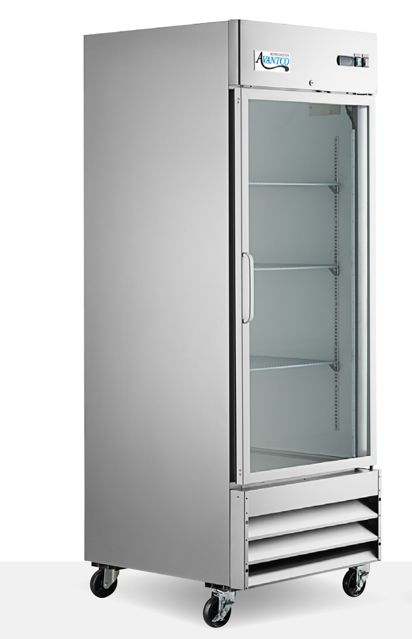

Avantco Refrigerator 178A23FHC

Disconnect power cord before cleaning any parts of the unit

Use warm water and mild soap with a clean cloth to wipe down the interior of the unit

Ensure no steel wool, caustic soap, abrasive cleaners, or bleach are used

Remove the shelves and pilasters from the unit

Clean shelves and pilasters with mild soap and warm water

To remove the pilasters, first remove the shelves and shelf brackets, then lift the pilaster up and out

Disconnect power cord before cleaning any parts of the unit

Ensure servicing is performed by an authorized service technician

Clean the fan blades and motor with a soft cloth if necessary

Cover the fan motor to prevent moisture damage if washing fan blades

Use a damp cloth to clean the fan blades

Disconnect the power cord before cleaning any parts of the unit.

Ensure servicing is performed by an authorized service technician.

Check for dust on the condenser coil.

Remove the front cover and base cover with a screwdriver.

Remove dirt, lint, etc. from the finned condenser coil using a soft brush and/or vacuum in a vertical direction.

Clean the condenser with a commercial condenser coil cleaner.

Straighten any bent condenser fins with a fin comb.

Disconnect power cord before cleaning any parts of the unit

Remove door gaskets from the frame of the door

Soak door gaskets in warm water and soap for 30 minutes

Dry door gaskets with a soft cloth

Replace door gaskets on the frame of the door

Check door gaskets for proper seal after replacement
