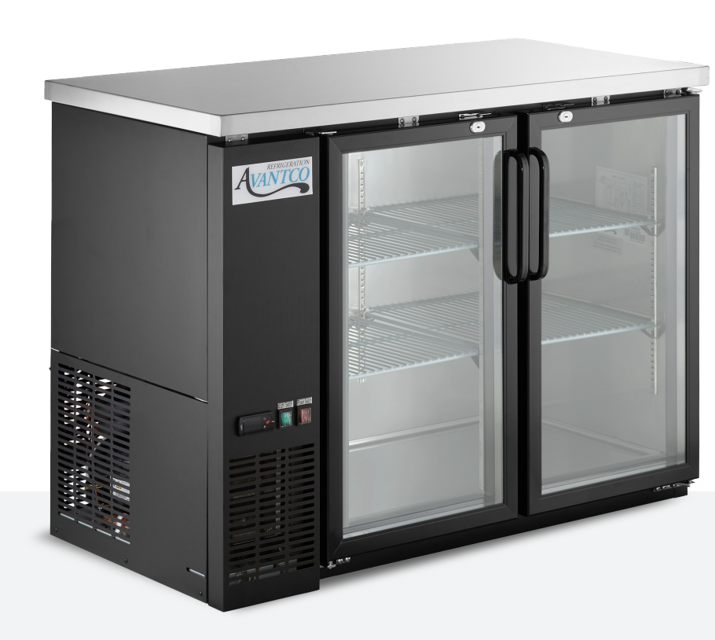

Avantco Back Bar Refrigerator 178UBB60HC

Disconnect power cord before cleaning any parts of the unit

Use a solvent of warm water and mild soap to clean the cabinet interior

Avoid using steel wool, caustic soap, abrasive cleaners, or bleach

Remove the shelves and pilasters from the unit

Clean shelves and pilasters with mild soap and warm water

To remove pilasters, first remove the shelves and shelf brackets, then lift the pilaster up and out

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Cleaning the Fan Blades and Motor

Clean the fan blades and motor with a soft cloth, if necessary.

If washing the fan blades, cover the fan motor to prevent moisture damage.

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

Is the power cord disconnected?

Remove the front cover and base cover with a screwdriver.

Using a soft brush and/or vacuum, remove the dirt, lint, etc. from the finned condenser coil in a vertical direction.

Clean the condenser with a commercial condenser coil cleaner.

Straighten any bent condenser fins with a fin comb.

Reinstall the front cover and base cover.

Reconnect the electrical power to the unit.

Disconnect power cord before cleaning any parts of the unit

Remove the door gasket from the frame of the door

Soak the door gasket in warm water and soap for 30 minutes

Dry the door gasket with a soft cloth

Replace the door gasket on the frame of the door

Check door gaskets for proper seal after they are replaced
