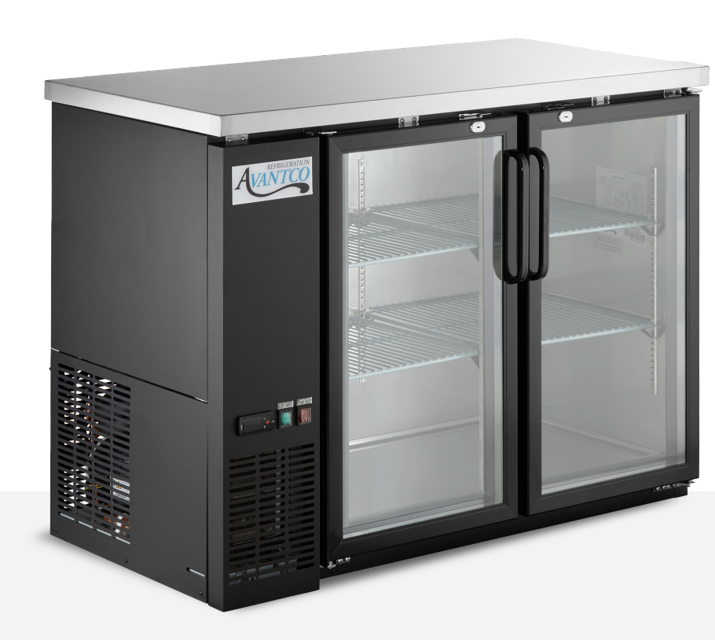

Avantco Back Bar Refrigerator 178UBB48HCS

Disconnect power cord before cleaning any parts of the unit

Remove the door gasket from the frame of the door

Soak the door gasket in warm water and soap for 30 minutes

Dry the door gasket with a soft cloth

Replace the door gasket on the frame of the door

Check door gaskets for proper seal after replacement

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Cleaning the Interior of the Unit

Use a solvent of warm water and mild soap to clean the cabinet interior.

Ensure no steel wool, caustic soap, abrasive cleaners, or bleach are used.

Remove and clean the following with mild soap and warm water

Describe any issues encountered during cleaning

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Check that the condenser surface is free of dust, dirt, and lint.

Disconnect the electrical power from the unit.

Remove the front cover and base cover with a screwdriver.

Using a soft brush and/or vacuum, remove the dirt, lint, etc. from the finned condenser coil in a vertical direction.

Clean the condenser with a commercial condenser coil cleaner.

Straighten any bent condenser fins with a fin comb.

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Cleaning the Fan Blades and Motor

Clean the fan blades and motor with a soft cloth, if necessary.

If washing the fan blades, cover the fan motor to prevent moisture damage.
