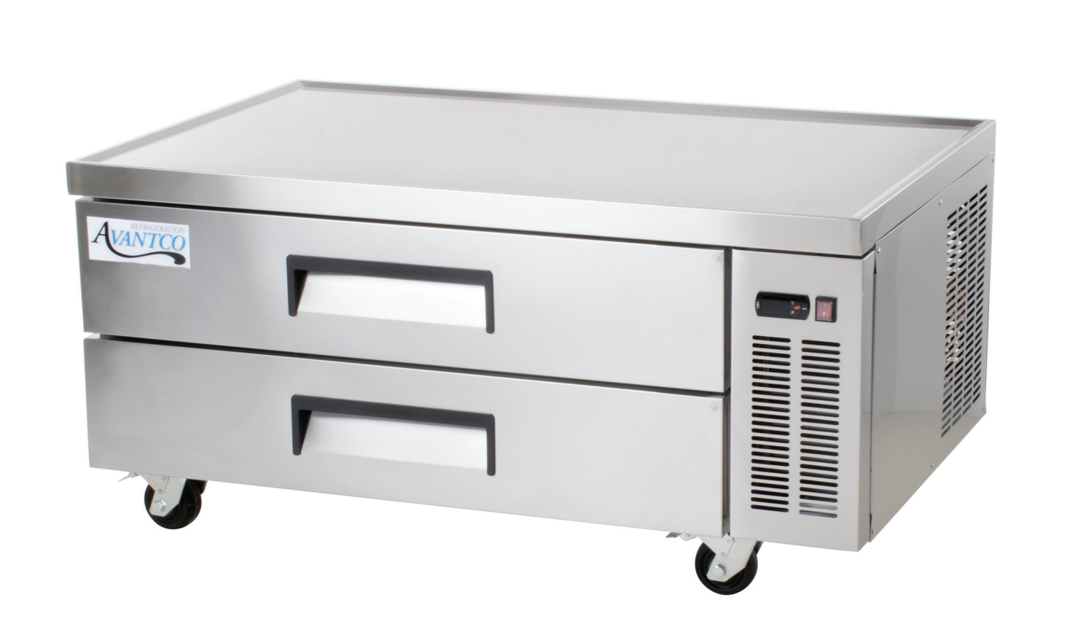

Avantco Refrigerated Chef Base 178CBE84HC

Disconnect power cord before cleaning any parts of the unit

Use a solvent of warm water and mild soap for cleaning

Avoid using steel wool, caustic soap, abrasive cleaners, or bleach

Drawer Divider Bars Maintenance

Remove the drawer divider bars from the unit

Clean the drawer divider bars with mild soap and warm water

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

Ensure the condenser surface is free of dust, dirt, and lint.

Clean the condenser coil and fins with a commercial condenser coil cleaner.

Brush the condenser fins from top to bottom, not side to side.

Straighten any bent condenser fins with a fin comb after cleaning.

WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT.

Cleaning The Fan Blades and Motor

Is it necessary to clean the fan blades and motor with a soft cloth?

Clean the fan blades and motor with a soft cloth if necessary.

Is it necessary to wash the fan blades?

Cover the fan motor to prevent moisture damage if washing the fan blades.

Disconnect power cord before cleaning any parts of the unit

Remove drawer gasket from the frame of the door

Soak gasket in warm water and soap for 30 minutes

Replace gasket on the frame of the door

Check drawer gaskets for proper seal after replacement
