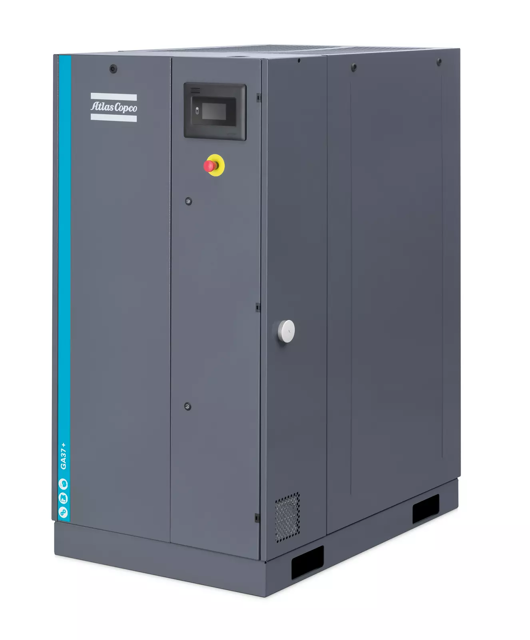

The Atlas Copco Oil-Injected Rotary Screw Compressor GA37 A FF is a high-performance industrial compressor designed for reliable air supply in various applications. Known for its efficiency and durability, this model features advanced technology to optimize energy consumption and reduce operational costs. Ideal for demanding environments, it ensures consistent performance and minimal downtime.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Atlas Copco Oil-Injected Rotary Screw Compressor GA37 A FF

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Atlas Copco Oil-Injected Rotary Screw Compressor GA37 A FF

Create an account to install this asset package.

Maintenance Plans for Atlas Copco Oil-Injected Rotary Screw Compressor Model GA37 A FF

Integrate maintenance plans directly into your work orders in MaintainX.

3 Monthly Oil-Injected Rotary Screw Compressor Maintenance

Check coolers. Clean if necessary

Remove the air filter element and inspect. If necessary, clean using an air jet. Replace damaged or heavily contaminated elements

Check the filter element of the electric cabinet. Replace if necessary

Run this procedure

1 Daily Oil-Injected Rotary Screw Compressor Check

Check oil level

Check readings on display

Check air filter service indicator

Check that condensate is discharged during operation

Drain condensate

On water-cooled units: check for cooling water flow

Run this procedure

4000 Hourly Air Filter Element Replacement

Warning: Ensure the compressor is stopped and voltage is switched off before starting the procedure

Compressor stopped and voltage switched off

Snap clips of air filter released and cover removed

Old air filter element discarded

New element and cover fitted

Service indicator reset by pushing the knob in the extremity of the body

Air filter service warning reset

Sign off on the air filter element replacement

Run this procedure

1 Monthly Oil-Injected Rotary Screw Compressor Maintenance

Condensate discharged when pressing the test button on top of the electronic water drain?

On compressors with integrated dryer

Compressor stopped, air outlet valve closed and voltage switched off?

Any dirt removed from the condenser inlet with a vacuum cleaner?

Cleaned with an air jet in the reverse direction of the normal flow?

Use low pressure air. Keep the compressed air nozzle more than 30 cm away from the condenser to avoid damaging the of condenser fins

Dust removed from inside the dryer, e.g. with a vacuum cleaner?

Do not use water or solvents to clean the condenser

Sign off on the monthly maintenance

Run this procedure

1 Weekly Condensate Check

Warning: Dispose of the collected condensate according to local regulations for oil containing water

Open the condensate sample valve at the side of the compressor for 5 seconds

Re-open the test valve and collect the condensate in the test bottle

Compare the turbidity of the sample with the 15 ppm turbidity reference bottle

Is the turbidity of the test sample more intense than the reference turbidity?

If the turbidity of the test sample is more intense than the reference turbidity, a request for servicing should be initiated, to be carried out within 2 weeks time.

Sign off on the condensate check

Run this procedure
