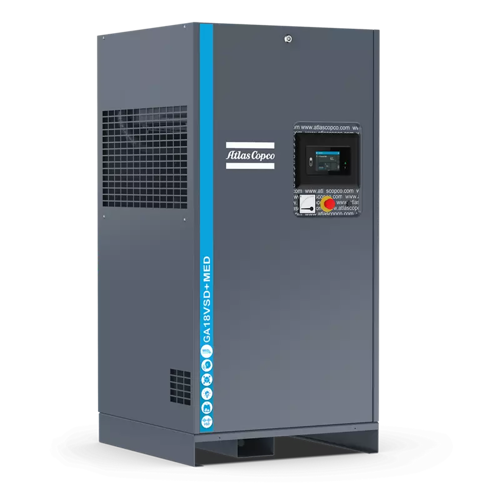

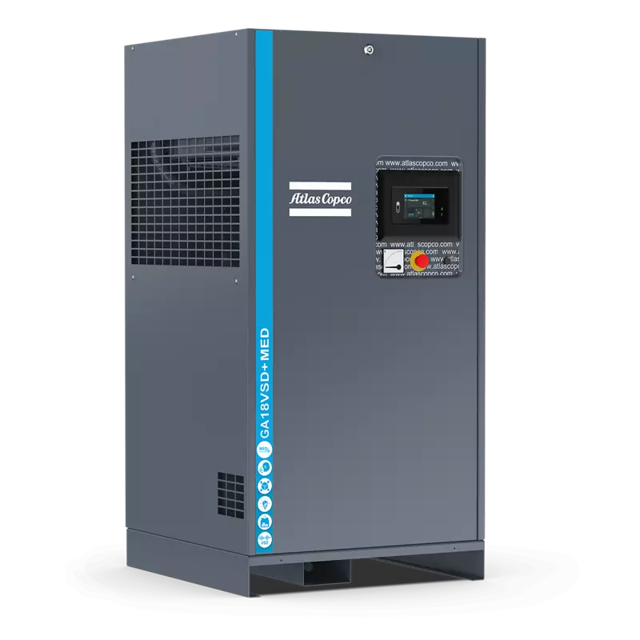

Atlas Copco Oil-Injected Rotary Screw Compressor GA 5 VSD MED

Compressor stopped and voltage switched off

Cover of air filter (AF) removed by turning it anti-clockwise

Was it necessary to clean the cover?

Air filter service warning reset

Sign off on the air filter element replacement

Compressor stopped and air outlet valve closed

Enter the force F needed to create a deflection of 5 mm (0.2 in)

Sign off on the belt tensioning and replacement

Check coolers, clean if necessary

Remove the air filter element. Clean using an air jet and inspect. Replace damaged or heavily contaminated elements

Check the filter element of the electric cabinet (where applicable). Replace if necessary

Test temperature shut-down function every 1 Year

Check that condensate is discharged during loaded operation

Check air filter service indicator

Check the service indicator on the DDx and PDx filters (if provided)

Replace the filter element of the electric cabinet (where applicable)

On Pack compressors: remove, dismantle and clean float valve of condensate trap

Replace V-belts every 8000 Hours

Have air inlet valve and minimum pressure valve inspected by Atlas Copco every 8000 Hours

Sign off on the compressor maintenance
