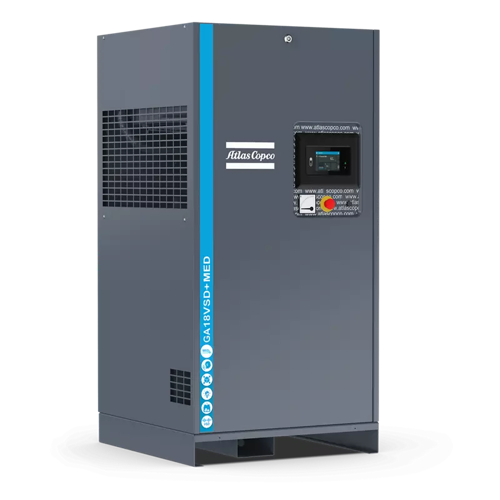

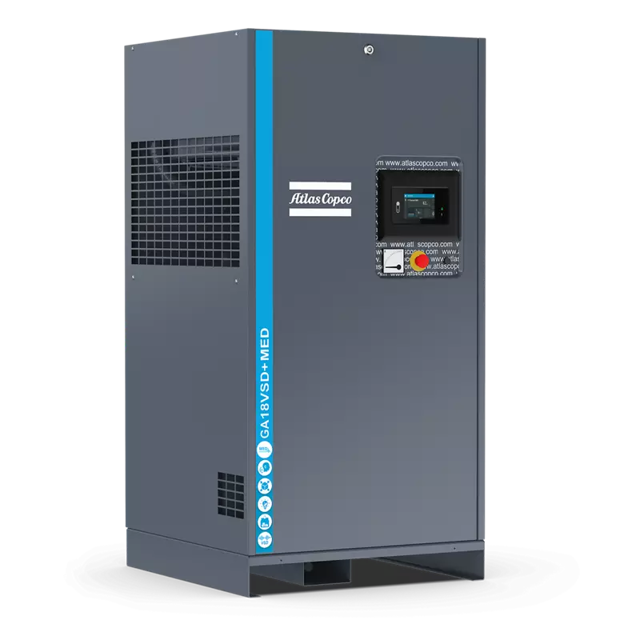

Atlas Copco Oil-Injected Rotary Screw Compressor GA 15 VSD MED

Compressor stopped and air outlet valve closed

Front panel and right panel removed

Enter the force F needed to create a deflection of 5 mm (0.2 in)

Sign off on the belt tensioning and replacement

Warning: Always stop the compressor, close the air outlet valve and switch off the voltage before starting the cleaning process.

Cover all parts under the coolers to protect them from dirt and debris.

Parts under the coolers covered?

Remove any dirt from the coolers with a fibre brush. Never use a wire brush or metal objects.

Next, clean with an air jet in the reverse direction to normal flow. Use low pressure air. If necessary, the pressure may be increased up to 6 bar(e) (87 psig).

Compressor stopped and voltage switched off

Cover of air filter removed by turning it anti-clockwise

Was it necessary to clean the cover?

Air filter service warning reset

Replace the filter element of the electric cabinet (where applicable)

On Pack compressors: remove, dismantle and clean float valve of condensate trap

Replace V-belts every 8000 Hours

Have air inlet valve and minimum pressure valve inspected by Atlas Copco every 8000 Hours

Sign off on the compressor maintenance

Check coolers, clean if necessary

Remove the air filter element. Clean using an air jet and inspect. Replace damaged or heavily contaminated elements

Check the filter element of the electric cabinet (where applicable). Replace if necessary

Test temperature shut-down function every 1 Year
