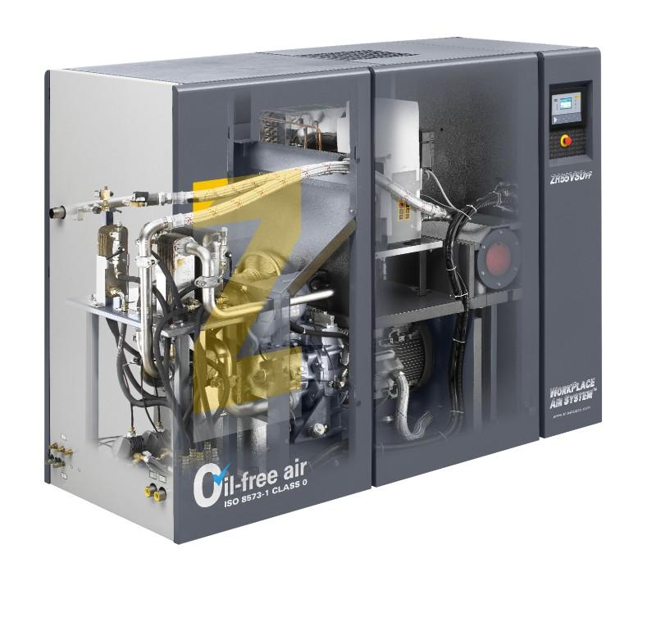

Atlas Copco Stationary Air Compressor ZT30

Condensate discharged during loading?

Before starting, the level should be in the middle of the sight-glass

Sign off on the daily stationary air compressor check

Warning: Always check the display and remedy the trouble if alarm LED is alight or blinks

Is the main screen indicating the compressor outlet pressure?

Is the status of the compressor displayed?

Are the functions of the keys below the display shown?

Is the alarm LED alight or blinking?

If the alarm LED is alight or blinking, consult your Atlas Copco Customer Centre

Does the display show a service message?

If a service message is displayed, carry out the service actions of the indicated plans or replace the component and reset the relevant timer.

Is the actual compressor status displayed when pressing the ↓ key from the main screen?

Compressor stopped and voltage switched off

Air filter cover removed and filter element removed

Cover cleaned and filter element discarded

New element and cover installed

Service warning reset after carrying out the service actions of the related service plan

WARNING! Never run the compressor without safety valves. No adjustments are allowed.

Safety valves present and functional

The valves can be tested on a separate compressed air line.

Enter the pressure at which the valve opened

If a valve does not open at the pressure specified in section 7.2, consult Atlas Copco.

Sign off on the safety valve testing

Check coolers, clean if necessary
