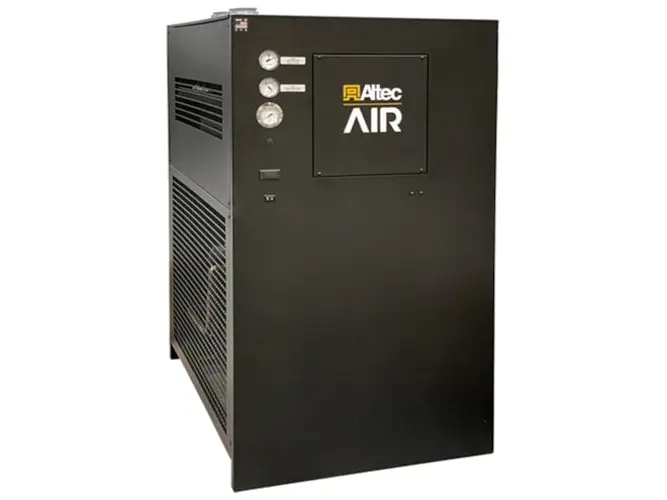

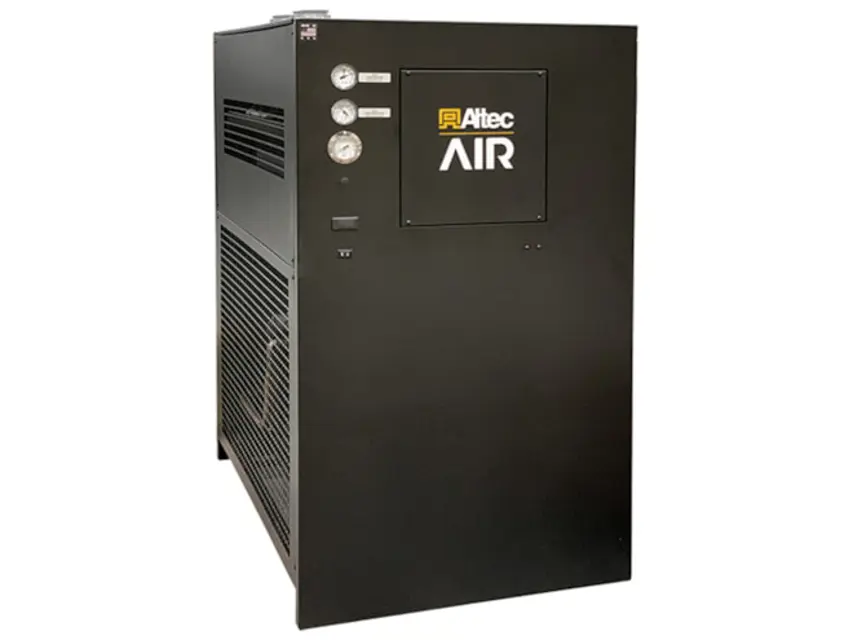

Altec Refrigerated Air Dryer DX1000A

WARNING! DRYER FAILURE DUE TO A DIRTY CONDENSER IS NOT COVERED UNDER WARRANTY

Check the operation of the automatic drain valves at least once during each eight hour shift.

Check Dew point Indicator to make sure it is the proper range.

Check Suction Pressure Gauge to make sure it is the proper range.

Check Discharge Pressure Gauge to make sure it is the proper range.

Make sure condenser coil is clean and unobstructed. Clean Air Cooled Condenser Coil if necessary.

Clean Air Cooled Condenser Coils - Blow off all dust and dirt that is on the condenser with a compressed air maintenance gun. While cleaning the condenser fins do not damage fins.

Clean Automatic Drain Valve - Close Isolation Valve; Push the Test Button to release the pressure Remove strainer/filter and screen; Clean screen and replace.

Check Compressed Air Filter Differential - Replace Elements if necessary.

Sign off on the monthly air dryer maintenance
