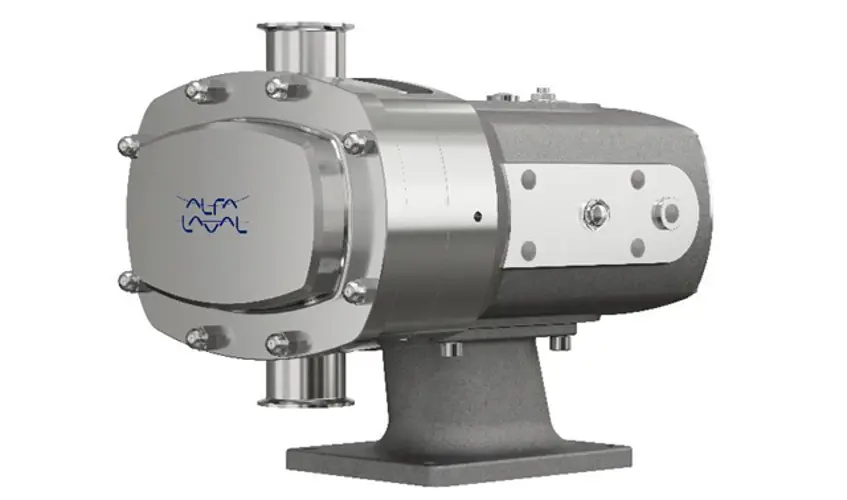

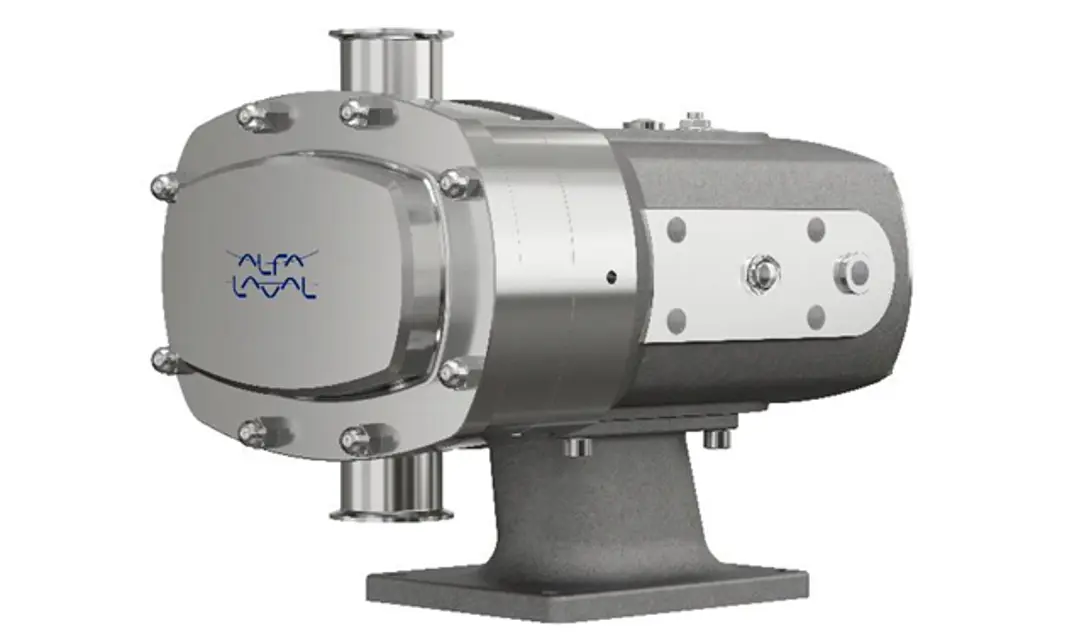

Alfa Laval Rotary Lobe Displacement Pump GHPD-632
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
1 Weekly Pump Maintenance
1. Checking the oil level in the gearcase (if applicable).
2. Checking the mechanical seals for leakage and replacing as necessary.
3. Adjusting the packed glands to control leakage.
4. Checking the oil seals for leakage.
5. Check pumping pressures.;
3000 Hourly Lubrication Oil Replacement
1. The pump will NOT be supplied oil filled.
2. First change - After 150 hours of operation.
3. Fill with oil through the filler plug to the level indicated in the sight glass.;
Flushed Hyclean Seal Replacement
– The seal rotary face is driven by a pin which locates in a slot on the shaft. A washer is located between the shaft shoulder and rotary face. A seal between the rotary face and shaft is provided by an 'O' ring.
– The stationary face is prevented from rotating as it has a flat side which sits in the rotorcase bore. Face to face contact is provided by a wave spring.
– Axial movement of the stationary face is prevented by a retaining clip. An 'O' ring within the rotorcase bore provides a seal onto the stationary face.
– A seal housing encloses the hyclean seal and is seal by an 'O' ring and retained to the rotorcase by socket head cap screws. A lip seal sits within the seal housing and runs on the rotary face, thus providing a seal.
CAUTION! SEAL FACES ARE BRITTLE - TAKE EXTREME CARE WHEN HANDLING. REMOVING THE FLUSHED HYCLEAN SEAL
REMOVING THE FLUSHED HYCLEAN SEAL
1. Carefully support and remove the rotorcase with the seal housing and stationary face still attached.
2. Slide the rotary face from the shaft.
3. Remove the seal housing screws to inspect the seal.
O-Ring Seal Replacement
– The large 'O' ring sits within the rotorcase bore and runs on the shaft sleeve. Rotation for the shaft sleeve is provided by a spring which locates in a slot on the shaft. An 'O' ring seals the shaft sleeve to the shaft.
REMOVING THE 'O' RING SEAL
1. Remove the rotorcase.
2. Slide the shaft sleeve from the shaft and inspect the 'O' rings.
FITTING THE 'O' RING SEAL
1. Lightly lubricate the 'O' rings with greas (food quality if necessary), locate in the shat sleeve and rotorcase bore.
2. Slide the shaft sleeve onto the shaft an locate the pin into the slot on the shaft.;
Initial 150 Hours Lubrication Oil Replacement
1. The pump will NOT be supplied oil filled.
2. First change - After 150 hours of operation.
3. Only use the oil/grease types recommended by your supplier.
4. Fill with oil through the filler plug to the level indicated in the sight glass.;
