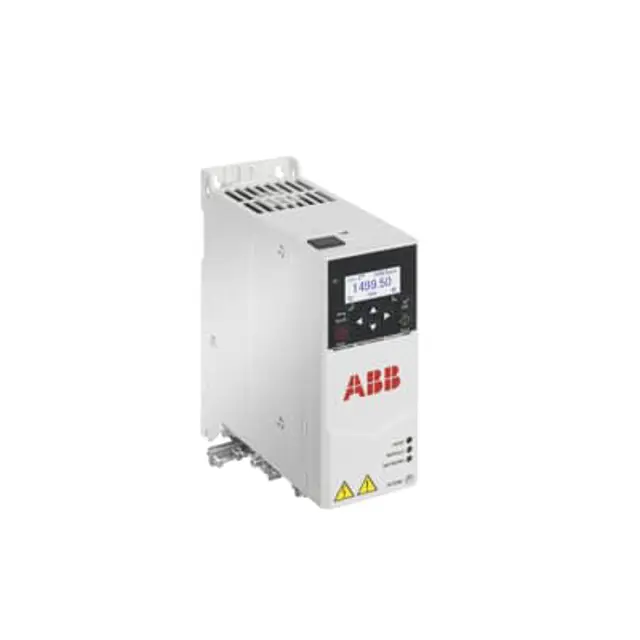

ABB Motor Control Drive ACS380-040S-032A-4

Check quality of supply voltage

Check DC circuit capacitors reforming for spare modules and spare capacitors

Inspect dustiness, corrosion and temperature

Sign off on the drive maintenance

The drive module heatsink fins pick up dust from the cooling air. The drive runs into overtemperature warnings and faults if the heatsink is not clean. When necessary, clean the heatsink as follows.

WARNING! Use the required personal protective equipment. Wear protective gloves and long sleeves. Some parts have sharp edges.

WARNING! Use a vacuum cleaner with antistatic hose and nozzle, and wear a grounding wristband. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.

1. Stop the drive and do the steps in section Electrical safety precautions before you start the work.

2. Remove the module cooling fan(s). See the separate instructions.

3. Blow dry, clean and oil-free compressed air from bottom to top and simultaneously use a vacuum cleaner at the air outlet to trap the dust. If there is a risk of dust entering adjoining equipment, do the cleaning in another room.

4. Reinstall the cooling fan.;

WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation or maintenance work.

Drive stopped and electrical safety precautions followed

Fan cover opened using a suitable flat screwdriver

Fan cover carefully lifted out of the drive

Fan power cable removed from the cable slot in the drive

Fan clips freed and fan removed from the fan cover

New fan installed into the fan cover with correct air flow direction

Warning: This maintenance check requires trained personnel with PPE!

Enter the surrounding air temperature

Any visible damage to the unit?

If there is visible damage, contact ABB immediately and stop the procedure

Enter the manufacturing date of the drive

Has the drive been powered in the last year?

If the drive has not been powered for a year or more, the capacitors must be reformed

Sign off on the capacitors maintenance

Warning: This procedure requires trained personnel with PPE!

Are all components within their mission time?

If any component is beyond its mission time, proceed with the following steps

Choose the type of service done

Enter the age of the oldest component in the circuit

Did the circuit pass the post-replacement test?

Sign off on the safety components replacement
