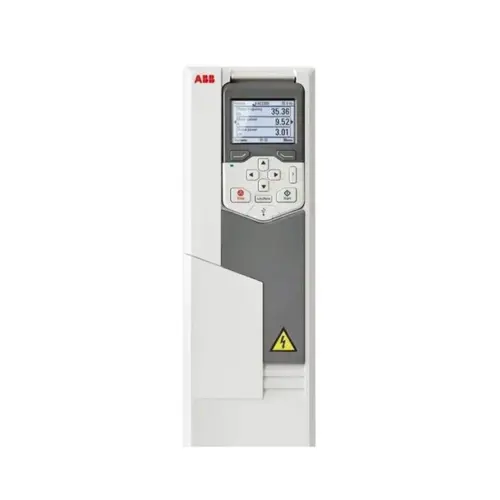

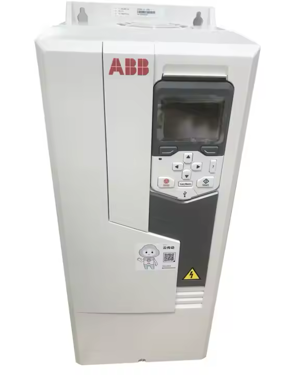

ABB Frequency Drive ACS580-01-206A-4
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Frequency Drive ACS580-01-206A-4
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

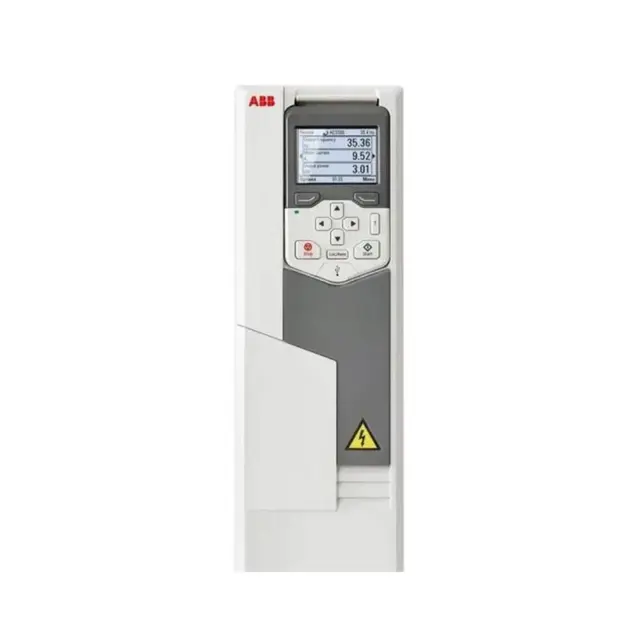

ABB Frequency Drive ACS580-01-206A-4
Create an account to install this asset package.
Maintenance Plans for ABB Frequency Drive Model ACS580-01-206A-4
Integrate maintenance plans directly into your work orders in MaintainX.
3 Yearly Auxiliary Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measurement confirms no power
Front cover removed
Fan power supply wires unplugged from the drive
Retaining clips released
Old fan lifted off
New fan installed with arrow pointing up
Sign off on the fan replacement
3 Yearly Main Cooling Fan Replacement
Drive stopped and disconnected from power line
Voltage measurement confirmed no voltage
Two mounting screws of the fan mounting plate undone
Fan mounting plate pulled down from the side edge
Fan power supply wires unplugged from the drive
Fan mounting plate lifted off
Fan removed from the mounting plate
New fan installed in reverse order
Sign off on the fan replacement
1 Yearly Hersink Maintenance
Warning: Use a vacuum cleaner with antistatic hose and nozzle. Using a normal vacuum cleaner creates static discharges which can damage circuit boards.
Drive stopped and disconnected from the power line?
No voltage measured after 5 minutes?
Cooling fan(s) removed?
Clean, dry and oil free compressed air blown from bottom to top and simultaneously used a vacuum cleaner at the air outlet to trap the dust?
Note: If there is a risk of dust entering adjoining equipment, perform the cleaning in another room.
Cooling fan(s) reinstalled?
Sign off on the Hersink maintenance
9 Yearly Battery Replacement
Warning: Only trained personnel should perform this procedure.
Control panel removed from the drive
Battery cover removed using a coin
Type of battery used for replacement
Old battery disposed according to local disposal rules or applicable laws
Sign off on the battery replacement
1 Yearly Drive Maintenance
Quality of supply voltage checked?
Spare part stock inspected?
Reforming of DC circuit capacitors inspected?
Tightness of cable and busbar terminals checked and tightened if needed?
Ambient conditions (dustiness, moisture, temperature) checked?
Control panel cleaned with a soft damp cloth?
Sign off on the yearly drive maintenance
Parts for ABB Frequency Drive ACS580-01-206A-4
Access the parts list for your equipment in MaintainX.
gG Fuse
OFAF1H315
uR and aR Fuse
170M3818
gG Fuse
OFAF1H315
uR and aR Fuse
170M3818
gG Fuse
OFAF1H315
uR and aR Fuse
170M3818
