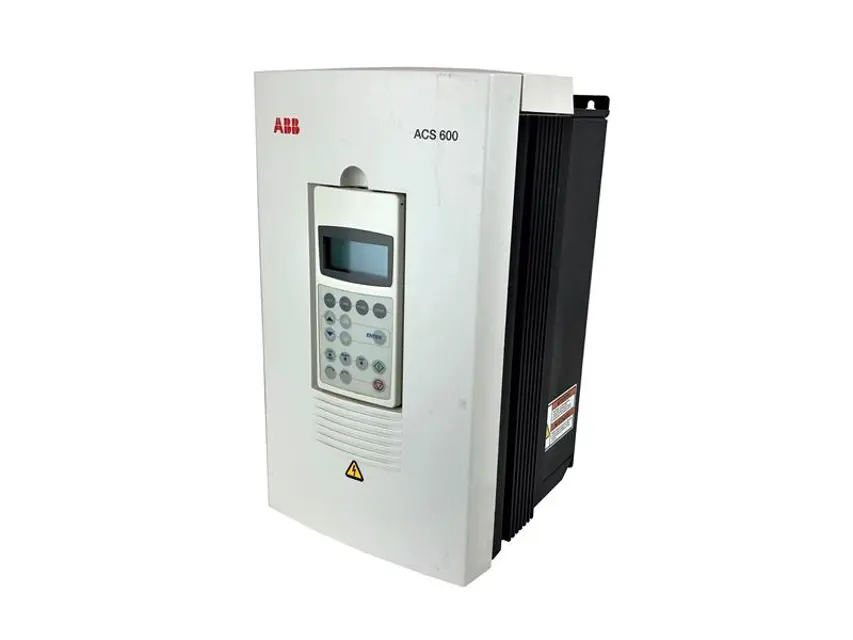

ABB Frequency Converter ACP 601-0025-5

Warning: The heatsink should be checked and cleaned annually to prevent overtemperature warnings and faults.

If using compressed air, ensure the cleaning is carried out in another room or outdoors.

Was fan rotation prevented during cleaning?

Sign off on the heatsink cleaning

Warning: Only use ABB specified spare parts for replacement

Current hours on the capacitors

Is there a mains fuse failure or a Fault trip?

If there is a mains fuse failure or a Fault trip, contact ABB for replacement parts

Capacitor replacement successful?

Reform (re-age) spare part capacitors once a year according to ACS 600 Capacitor Reforming Guide (code: 64059629)

Sign off on the capacitor replacement

Warning: Only trained personnel should perform this procedure.

Enter the current usage hours of the ACx 601 unit

Is there increasing noise from fan bearings?

Is there a gradual rise in the heatsink temperature despite cleaning?

Is the frequency converter operated in a critical part of a process?

If the above checks indicate fan failure, proceed with fan replacement.

Fan can be withdrawn by removing the bottom of the frame.

Replacement fans are available from ABB. Do not attempt operation with other than ABB specified spare parts.

Sign off on the fan replacement procedure
