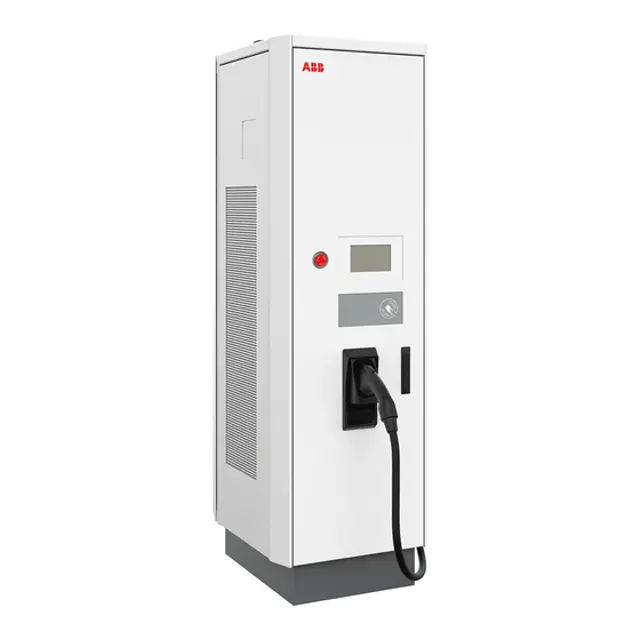

ABB Fast Charging Station Terra 94

Warning: De-energize the EVSE before starting the procedure

Nuts loosened using the spanner

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off.

New air inlet filter installed with correct air flow direction

Loosen the nuts using the spanner

Carefully pull and remove the outlet filter

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off

Install the new air outlet filter. Make sure that the air flow direction that is indicated on the air outlet filter corresponds with the air flow

– Do a check for damage on the EV charge cables and the connectors.

– Do a check for damage on the cabinet.

1. Do a check for damage on these parts: EV charge cables and connectors:

- Internal wires of the cable are visible

Coating of the cabinet; - Cracks or ruptures

• Do not apply high-pressure water jets. Water can leak into the cabinet.

NOTE: When the EVSE is put in a corrosion sensitive environment, superficial rust is possible on welding points. This rust is only visual. There is no risk for the integrity of the cabinet. The procedure below removes the rust.

1. Rinse with low-pressure tap water to remove rough dirt.

2. Apply a a solution of cleaning agent to the cabinet and let it soak.

3. Manually remove dirt. Use the non-abrasive tool.

CAUTION: Do not use abrasive tools.

4. Rinse with low-pressure tap water.

Loosen the nuts using the spanner

Carefully pull and remove the outlet filter

CAUTION: Prevent contamination of other parts of the EVSE. Make sure that contamination on the filter does not come off

Install the new air outlet filter. Ensure that the air flow direction that is indicated on the air outlet filter corresponds with the air flow
