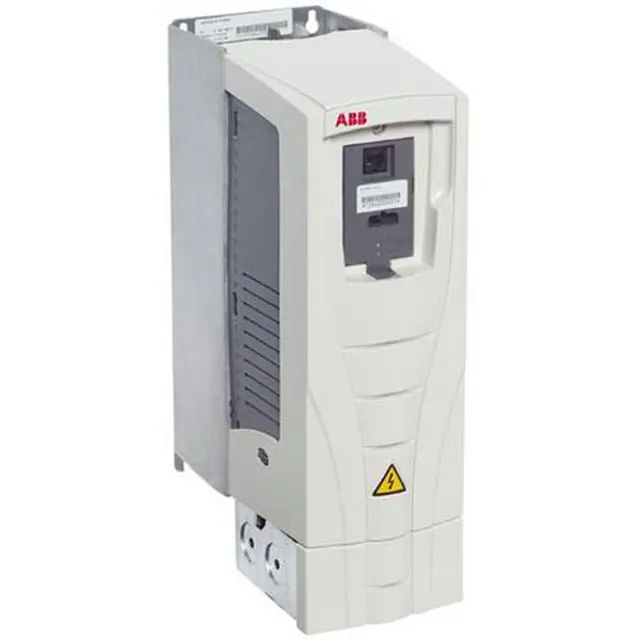

ABB Adjustable Speed AC Drive ACS550-U1-125A-6
Need answers fast?
Explore the manual using AI.
The ABB Adjustable Speed AC Drive ACS550-U1-125A-6 is designed for efficient motor control in industrial applications. This versatile drive enhances energy savings and operational performance, making it an ideal choice for various automation tasks. With robust features and reliable performance, it supports a wide range of applications.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Adjustable Speed AC Drive ACS550-U1-125A-6
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Adjustable Speed AC Drive ACS550-U1-125A-6
Create an account to install this asset package.
Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-U1-125A-6
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Heatsink Maintenance
Warning: Always remove power from the drive before starting the maintenance.
Is the environment dusty?
If the environment is dusty, increase the frequency of heatsink checks.
Heatsink fins free of dust?
If heatsink fins are not free of dust, follow the cleaning procedure.
Power removed from the drive?
Cooling fan removed?
Clean compressed air blown from bottom to top?
Vacuum cleaner used at the air outlet to trap the dust?
6 Yearly Main Cooling Fan Replacement
Warning: Only trained personnel should perform this procedure.
Power removed from the drive?
Screw attaching the fan casing removed?
Casing leaned down against the limiters?
Cable connector slid out and disconnected?
Casing taken off and fan replaced onto the casing’s pins?
Casing reinstalled in reverse order?
Power restored?
Sign off on the fan replacement
3 Yearly Internal Enclosure Cooling Fan Replacemnt
Power removed from the drive
Front cover removed
Fan lifted out and cable disconnected
Fan installed in reverse
Power restored
Sign off on the fan replacement
