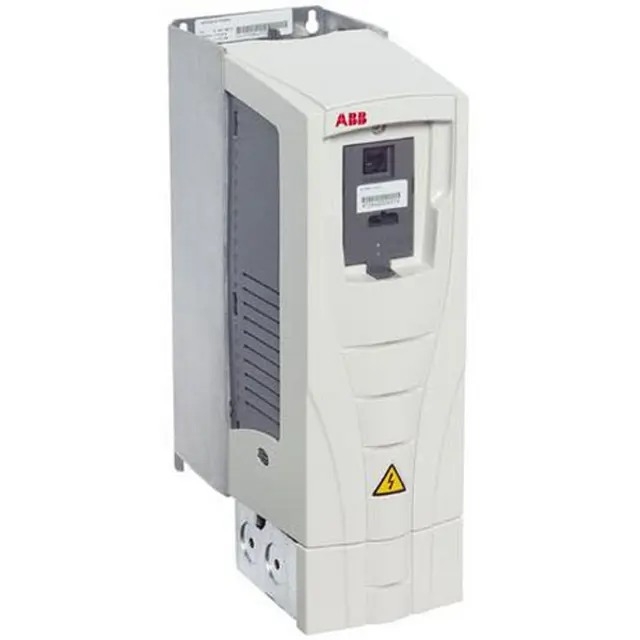

ABB Adjustable Speed AC Drive ACS550-01-248A-2
Need answers fast?
Explore the manual using AI.
The ABB Adjustable Speed AC Drive ACS550-01-248A-2 is designed for efficient motor control in industrial applications. This versatile drive enhances energy savings and operational performance, making it ideal for various automation needs. With robust features and reliable performance, the ACS550 series is a preferred choice for optimizing motor-driven systems.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB Adjustable Speed AC Drive ACS550-01-248A-2
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB Adjustable Speed AC Drive ACS550-01-248A-2
Create an account to install this asset package.
Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-01-248A-2
Integrate maintenance plans directly into your work orders in MaintainX.
3 Yearly Internal Enclosure Cooling Fan Replacemnt
Power removed from the drive
Front cover removed
Fan lifted out and cable disconnected
Fan installed in reverse
Power restored
Sign off on the fan replacement
6 Monthly Heatsink Maintenance
Warning: Ensure to wear appropriate PPE while performing the maintenance.
Is the environment dusty?
If the environment is dusty, increase the frequency of checks.
Power removed from the drive?
Cooling fan removed?
Clean compressed air blown from bottom to top?
Simultaneously used a vacuum cleaner at the air outlet to trap the dust?
Note: If there is a risk of the dust entering adjoining equipment, perform the cleaning in another room.
Cooling fan reinstalled?
6 Yearly Main Cooling Fan Replacement
Warning: Only trained personnel should perform this procedure
Ensure power is removed from the drive before starting
Power removed from the drive
Screw attaching the fan casing removed
Cable connector disconnected
Fan replaced onto the casing’s pins
Casing reinstalled
Power restored
Sign off on the fan replacement
Parts for ABB Adjustable Speed AC Drive ACS550-01-248A-2
