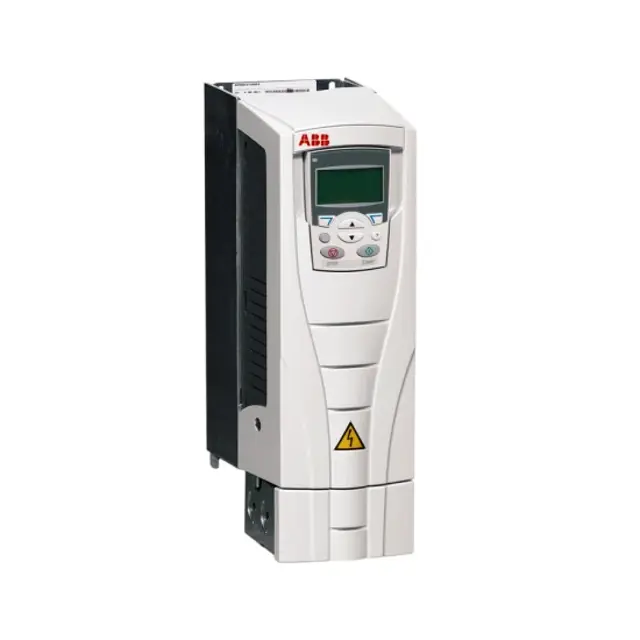

ABB Adjustable Speed AC Drive ACS550-01-07A5-2

Create an account to install this asset package.

Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-01-07A5-2

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly Heatsink Maintenance

Warning: Always ensure power is disconnected before starting the procedure.

Is the environment dusty?

If the environment is dusty, increase the frequency of heatsink checks.

Power removed from the drive?

Cooling fan removed?

Clean compressed air blown from bottom to top?

Vacuum cleaner used at the air outlet to trap the dust?

Note: If there is a risk of the dust entering adjoining equipment, perform the cleaning in another room.

Cooling fan reinstalled?

Run this procedure

6 Yearly Main Cooling Fan Replacement

Warning: Only trained personnel should perform this procedure.

Fan showing signs of failure (increasing noise, rising heatsink temperature)?

If no signs of failure, skip the replacement procedure.

Replacement fan available from ABB?

If no replacement fan available, order from ABB and wait for delivery.

Power removed from the drive?

Drive cover removed?

Select the frame size

Fan cover removed according to frame size?

Run this procedure

3 Yearly Internal Enclosure Cooling Fan Replacemnt

Warning: Ensure power is removed from the drive before starting the procedure.

Power removed from the drive?

Front cover removed?

Barbed retaining clips released?

Housing removed from the drive?

Fan cable disconnected?

Note: The fan air flow is up (refer to the arrow on fan). The fan wire harness is toward the front. The notched housing barb is located in the right-rear corner. The fan cable connects just forward of the fan at the top of the drive.

Fan installed in correct orientation?

Fan cable connected correctly?

Run this procedure
