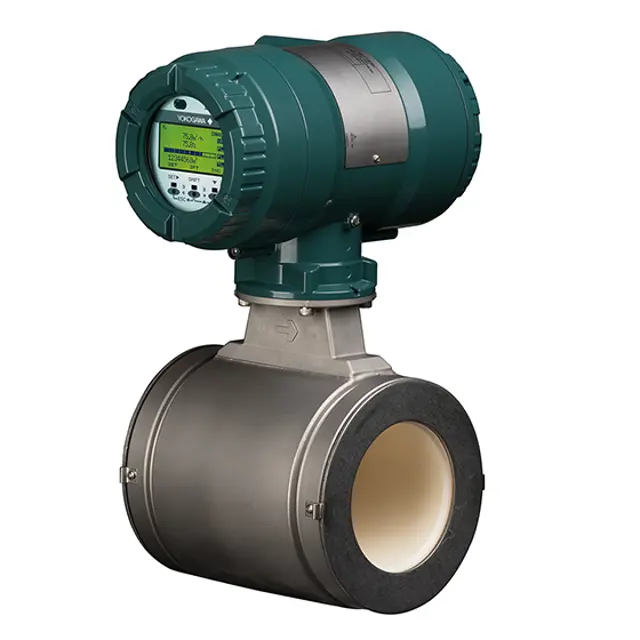

Yokogawa Flowmeter AXG080
Create an account to install this asset package.
Maintenance Plans for Yokogawa Flowmeter Model AXG080
Integrate maintenance plans directly into your work orders in MaintainX.
Insulation Resistance Check
Removing or Installing the Cover (Remote Sensor)
Loosen the cover locking screw using a hexagonal wrench (nominal size 3) to unlock the cover
Remove the cover by turning it in the direction of the arrow
Install the cover to the terminal box by turning it clockwise
Tighten the cover locking screw using a hexagonal wrench (nominal size 3) to lock the cover
Insulation Resistance Check
Check the insulation resistances in the remote sensor
Is the insulation resistance above the minimum required value?
Consult YOKOGAWA’s sales or service offices if insulation resistance is below the required value
Excitation Coil Check
Removing the Cover
Loosen the cover locking screw using a hexagonal wrench (size 3)
Remove the cover by turning it in the direction of the arrow
Installing the Cover
Install the cover to the terminal box by turning it clockwise
Tighten the cover locking screw using a hexagonal wrench (size 3)
Excitation Coil Continuity Check
Check for continuity between excitation terminals 'EX1' and 'EX2'
Is the coil resistance 150 Ω or more?
Display Board Replacement
Removing the Cover
Read Section 5.1
Remove the cover
Removing the Display Board
Hold the display unit with your hand
Loosen the two mounting screws
Ensure no other objects are inserted into the display board's insertion port
Removing the Connector
Unlock the connector by pushing the lever in the direction of the "UNLOCK" mark
