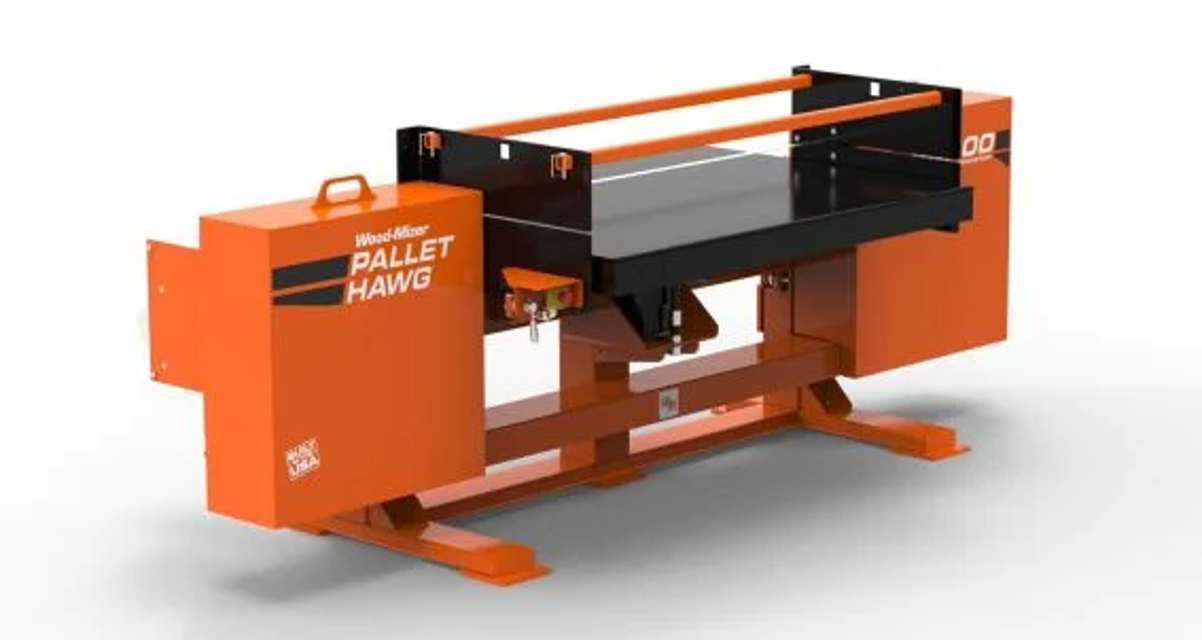

Wood-Mizer Electric Pallet Dismantler PD200B10-CU-HS

Create an account to install this asset package.

Maintenance Plans for Wood-Mizer Electric Pallet Dismantler Model PD200B10-CU-HS

Integrate maintenance plans directly into your work orders in MaintainX.

Blade Maintenance

WARNING! Before performing service, lock out the electrical service as described in section 2.4. Failure to do so could result in death or serious injury.

Open the wheel covers to observe the blade on the drive wheels.

Loosen the lock nuts on the tensioner.

Loosen the inner (B) while tightening the outer (A) bolt to move the blade TOWARD THE BLADE GUIDE BEARING.

Loosen the outer (A) while tightening the inner (B) bolt to move the blade AWAY FROM THE BLADE GUIDE BEARING.

IMPORTANT! Do not move the adjustment bolts more than 1/4 turn per adjustment. This adjustment is sensitive.

Close the wheel covers.

Momentarily (approximately 15 seconds) start the blade.

Ensure power is off before performing the next steps.

Run this procedure

Blade Change

WARNING! Before performing service, lock out the electrical service as described in section 2.4. Failure to do so could result in death or serious injury.

Open the wheel covers to observe the blade on the drive wheels.

Release the tension by ratcheting the device until the pivot arm is fully released.

Removed the used blade.

Install the new blade on the center of the drive wheel tires.

IMPORTANT! Ensure the blade is positioned as shown below in Figure 4-3.

Tighten the tension by ratcheting the device handle until the pivot arm is touching the stop bolt.

Close the wheel covers.

Momentarily (approximately 15 seconds) start the blade.

Run this procedure

Drive Hub Removal

Occasionally bearings will need to be changed on the gearbox.

1. Remove the blade drive wheel cover.

2. Loosen and remove the blade. Refer to Section 4.3 Changing the blade.

3. Remove the drive wheel by loosening and removing the six lug nuts.

4. Remove the three bolts in the tapered bushing on the drive shaft.

5. Replace two of the bolts into the treaded holes.

6. Alternate tighten the two bolts until the bushing releases from the wheel flange.

The gearbox is now accessible for maintenance.;

Run this procedure

Electric Pallet Dismantler Maintenance

4.1 General maintenance after each use

1. Check for debris impeding any moving parts.

2. Clean debris off of the motor or engine and fuel tank.

3. Check engine oil per motor/engine manufacturer’s manual specifications.

4. Check that the tire pressure are between 50-55 psi.

5. Check gearbox oil level per gearbox manufacturer’s manual specifications.

IMPORTANT! DO NOT OVERFILL THE GEARBOX. The gearbox is mounted in the B7 wall mounting position. In this mounting position the unit requires 6.1 PINTS of oil.

Recommend lubricants are:

Mobile (Mobilgear 630) Citgo (EP Compound 220)

Run this procedure
