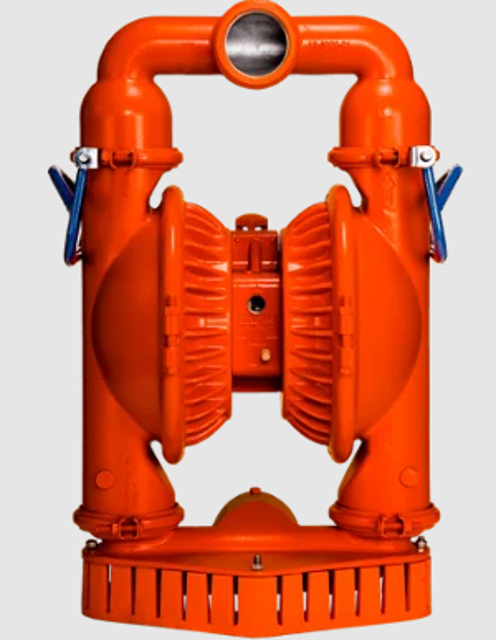

Wilden Clamped Metal Pump XPS15/WWAAA
Create an account to install this asset package.
Maintenance Plans for Wilden Clamped Metal Pump Model XPS15/WWAAA
Integrate maintenance plans directly into your work orders in MaintainX.
Pump Disassembly
Preparation
Ensure all tools are available
Disconnect the compressed air line to the pump and allow all air pressure to bleed from the pump
Disconnect all intake, discharge, and air lines
Drain the pump by turning it upside down and allowing any fluid to flow into a suitable container
Note any hazardous effects of contact with your process fluid
Disassembly Steps
Mark a line from each liquid chamber to its corresponding air chamber for alignment during reassembly
Remove the two small clamp bands fastening the discharge manifold to the liquid chambers
Air Valve / Center Section Disassembly
Preparation
Ensure all necessary tools are available
Disconnect the compressed air line to the pump and allow all air pressure to bleed from the pump
Disconnect all intake, discharge, and air lines
Drain the pump by turning it upside down and allowing any fluid to flow into a suitable container
Be aware of any hazardous effects of contact with your process fluid
Disassembly Steps
Remove the snap ring from the pilot sleeve using snap-ring pliers
Remove the O-ring from modulator spool using an O-ring pick
Parts for Wilden Clamped Metal Pump XPS15/WWAAA
Access the parts list for your equipment in MaintainX.
Air Valve Assembly, Pro-Flo Shift™ 1
04-2039-01
O-Ring, End Cap (-225, 01.859" x Ø.139")
04-2390-52-700
End Cap
04-2340-01
Screw, SHC, Air Valve (1/4"-20 x 4-1/2")
01-6000-03
Muffler Plate, Pro-Flo Shift™
04-3189-01
Air Valve Assembly, Pro-Flo Shift™ 1
04-2039-01
O-Ring, End Cap (-225, 01.859" x Ø.139")
04-2390-52-700
End Cap
04-2340-01
Screw, SHC, Air Valve (1/4"-20 x 4-1/2")
01-6000-03
Muffler Plate, Pro-Flo Shift™
04-3189-01
Air Valve Assembly, Pro-Flo Shift™ 1
04-2039-01
O-Ring, End Cap (-225, 01.859" x Ø.139")
04-2390-52-700
End Cap
04-2340-01
Screw, SHC, Air Valve (1/4"-20 x 4-1/2")
01-6000-03
Muffler Plate, Pro-Flo Shift™
04-3189-01
