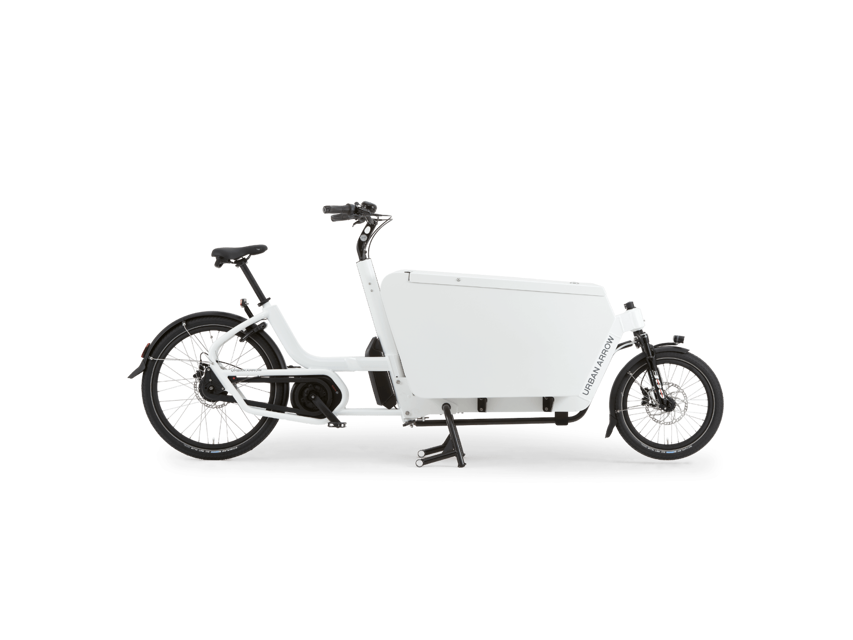

Urban Arrow E-bike Cargo

Check tyre surface for sharp objects

Check front tyre pressure (2.4-3.5 bar)

Check rear tyre pressure (3-4 bar)

Ensure the e-bike is turned off and stable

Gather necessary tools and materials (clean cloth, PTFE lubricant)

Clean the suspension struts with a clean cloth

Lubricating the Suspension Front Fork

Apply PTFE lubricant to the suspension struts

Ensure no lubricant is spilled on the disc brake

Ensure the bike is on a stable surface

Check that the front fork is clean and free of debris

Locate the suspension adjusters on both sides of the front fork

Choose the adjustment direction for the suspension pre-load

Measure the suspension compression under load (mm)

Is the suspension compression approximately 10 mm under load?

Gear Adjustment for Enviolo Gear System

Pull lightly on one of the two cable housings at the grip shifter

Take a seat on the saddle and face forward

Gear Adjustment for Rohloff Gear System

Alignment of the Mark on the Twist Shifter Body

Measure the clearance between the speed sensor and its magnet

Is the clearance within the specified range (5 mm to 17 mm)?

Is the speed sensor connected properly?

Is 'error 503' displayed on the screen?

Loosen the screw of the speed sensor magnet by turning it counter clockwise
