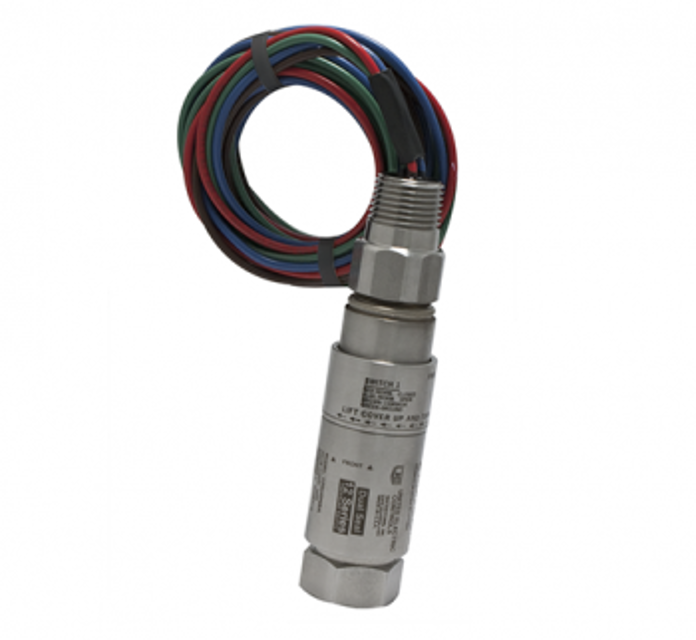

United Electric Controls Pressure Switch 12SHSN3A

Create an account to install this asset package.

Maintenance Plans for United Electric Controls Pressure Switch Model 12SHSN3A

Integrate maintenance plans directly into your work orders in MaintainX.

Pressure Switch Wiring

Safety Precautions

Disconnect all supply circuits before wiring product

Ensure wiring is in accordance with local and national electrical codes

Protect wires against mechanical damage using a conduit or other suitable means

Electrical Ratings and Approvals

Are the electrical ratings within the stated limits on the product housing?

Is the DIN connector (Option M515, Figure 4) used outside Class I, Div. 1 hazardous locations/flameproof atmospheres?

ATEX Installation Requirements

Is an external grounding screw (Option M460) used for non-metallic conduit systems?

Run this procedure

Pressure Switch Mounting

Safety Precautions

Read and understand all safety instructions before installation

Mounting Instructions

Select the mounting type

For pressure models, use a wrench on pressure connection wrench flat

For differential pressure models, mount against a rigid support and connect high and low pressure connections

For assemblies with junction boxes, mount vertically with pressure connection down

Panel Mounting

Mount through 7/8" clearance hole in panel

Run this procedure

Pressure Switch Set Point Adjustment

Gather necessary tools

Connect control to pressure source

Disconnect power and slide cover

Ensure power is disconnected

Slide cover toward electrical terminations while twisting to overcome friction

Connect power to terminals or leads

Adjust pressure switch set point

Insert screwdriver into adjustment slot

Turn screwdriver clockwise to increase setting or counter clockwise to decrease setting

Run this procedure

Parts for United Electric Controls Pressure Switch 12SHSN3A

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Factory Set Switch, Specify Increasing Or Decreasing Pressure

M201

Range In Kpa Or Mpa On Nameplate, Factory Selected. Not Available On Temperature Versions

M277

Range In Kg/Cm² On Nameplate. Not Available On Temperature Versions

M278

Flame Proof, Intrinsic Safety For Inmetro Compliance

M391

Nace Mr0175 Wetted Material Compliance. Available Sensor Types 2A-F, 3A-H, 4A-H, 5A-H, 6A-H, 7A-D, 8A-G, 9A-C, P0-9. Consult Factory For Details On Repeatability, Deadband, And Overpressure Limits

M401

Factory Set Switch, Specify Increasing Or Decreasing Pressure

M201

Range In Kpa Or Mpa On Nameplate, Factory Selected. Not Available On Temperature Versions

M277

Range In Kg/Cm² On Nameplate. Not Available On Temperature Versions

M278

Flame Proof, Intrinsic Safety For Inmetro Compliance

M391

Nace Mr0175 Wetted Material Compliance. Available Sensor Types 2A-F, 3A-H, 4A-H, 5A-H, 6A-H, 7A-D, 8A-G, 9A-C, P0-9. Consult Factory For Details On Repeatability, Deadband, And Overpressure Limits

M401

Factory Set Switch, Specify Increasing Or Decreasing Pressure

M201

Range In Kpa Or Mpa On Nameplate, Factory Selected. Not Available On Temperature Versions

M277

Range In Kg/Cm² On Nameplate. Not Available On Temperature Versions

M278

Flame Proof, Intrinsic Safety For Inmetro Compliance

M391

Nace Mr0175 Wetted Material Compliance. Available Sensor Types 2A-F, 3A-H, 4A-H, 5A-H, 6A-H, 7A-D, 8A-G, 9A-C, P0-9. Consult Factory For Details On Repeatability, Deadband, And Overpressure Limits

M401
