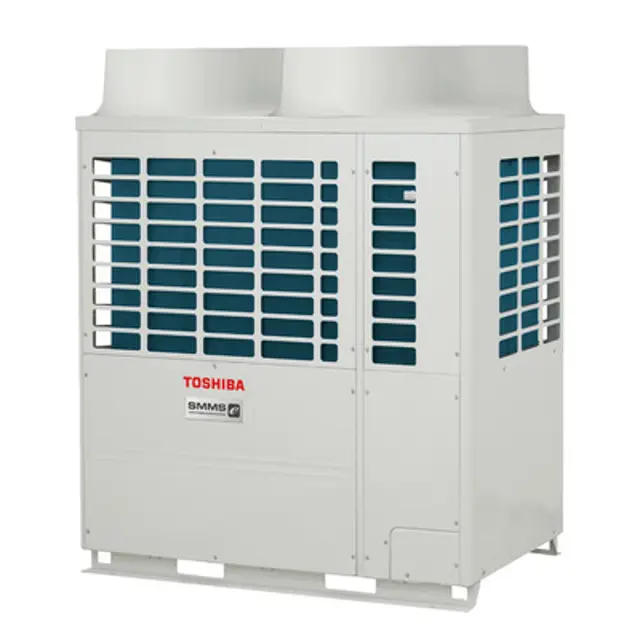

Toshiba Air Conditioner MMY-MAP0806HT8P

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

The Toshiba Air Conditioner MMY-MAP0806HT8P is a high-efficiency cooling solution designed for optimal performance in various environments. This model combines advanced technology with reliable operation, ensuring comfort and energy savings for residential and commercial applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Toshiba Air Conditioner MMY-MAP0806HT8P

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Toshiba Air Conditioner MMY-MAP0806HT8P

Create an account to install this asset package.

Maintenance Plans for Toshiba Air Conditioner Model MMY-MAP0806HT8P

Integrate maintenance plans directly into your work orders in MaintainX.

Replacement Compressor

Replacement of Compressors

• Lay the faulty compressor down, draw a small amount of oil; via the oil equalization pipe, and check its color against color; samples.

• Determine the number of compressors to be replaced; according to the color checking result.

ASTM grade: Below 4 Replace the faulty compressor only.

ASTM grade: 4 or above Replace both the faulty compressor; and the normal compressor(s).

WARNING

When detaching a pipe by heating with a burner at brazed; joint, take care as any oil left in the piping may burn in a; momentary flash of fire when the brazing filler metal melts.

[When replacing faulty compressor only]

Run this procedure

Check Compressor

How to Check Inverter Output

(1) Turn off the power supply.

(2) Remove compressor leads from the IPDU P.C. board; (A3-IPDU). (Be sure to remove all the leads.)

(3) Turn on the power supply and start cooling or heating; operation.

Be careful not to make simultaneous contact with two or more; faston connectors for compressor leads or a faston connector; and some other object (e.g. the unit cabinet).

(4) Check the output voltage across each pair of inverter-side; (CN201, 202, 203). If the result is unsatisfactory according to; the judgment criteria given in the table below, replace the; IPDU P.C. board.

* When connecting the compressor leads back to the; compressor terminals after checking the output, check the

faston connectors thoroughly to ensure that they are not; crooked. If there is any loose connector, tighten it with a pair; of pliers, etc. before connecting the lead.

How to Check Resistance of Compressor Winding

Run this procedure
