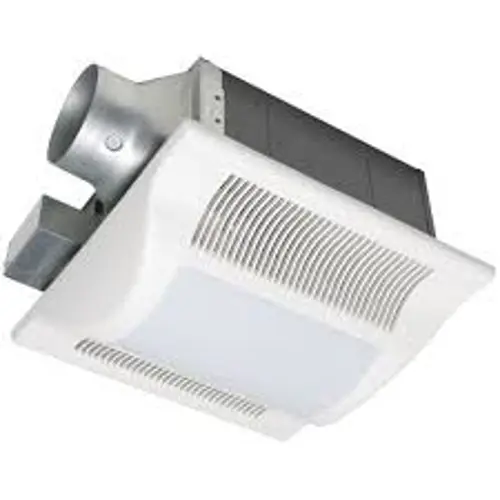

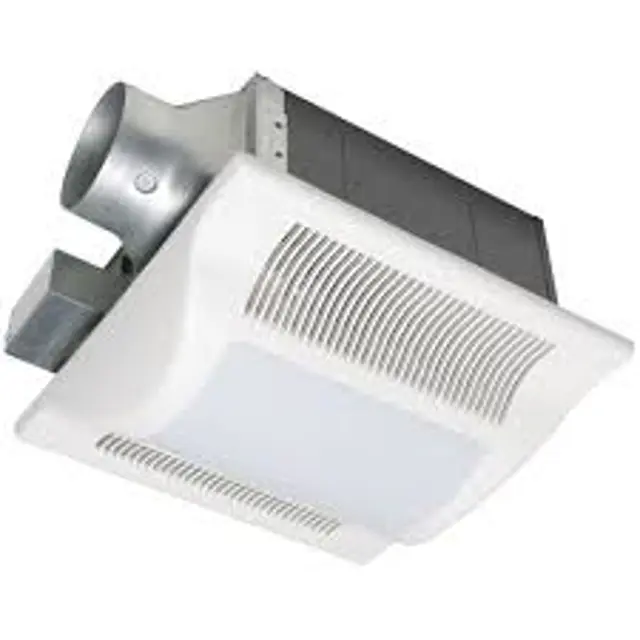

Panasonic Fan FV-05VFL2

1. Remove grille. (Squeeze mounting spring and pull down) (Fig.22 of page 13)

2. Disconnect the connector II or connector III of lighting unit. (Fig.26)

3. Change the fluorescent lamps (Panasonic FDS 18E27/4,18 W or FDS18E35/4, 18 W or FDS18E42/4, 18 W ) or the 4 W night lamp, connect the connector Il or connector III and replace the grille. (Fig.27);

1. Remove grille. (Squeeze mounting spring and pull down carefully.) (Fig.22)

2. Wash and clean grille. (Use non-abrasive kitchen detergent wipe dry with new cloth.) (Fig.23)

3. Remove dust and dirt from fan body using a vacuum cleaner. (Remove lamps if necessary.) (Fig.24)

4. Using a cloth dampened with kitchen detergent, remove any dirt from fan body. Wipe dry with new cloth. (Fig.25)
