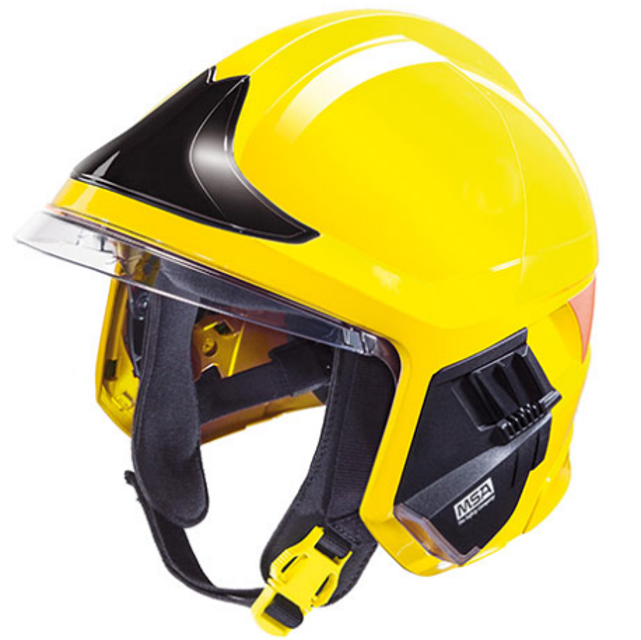

MSA MSA Helmet for Firefighters Gallet F1 XF Gallet F1 XF

Before each use, inspect the helmet for visible damages such as:

 Cracks, breakages, major plastic distorsion (bumps) on shell, visors and all solid elements.

 Missing shell coating (paint, metal coating) on large surfaces.

 Damaged straps or fabric elements (holes, torn areas, missing stitches, etc.).

Check proper operation of adjustment and safety elements such as the headband ratchet knob, chinstrap buckle, straps adjusters, connection clips, etc.;

(1) Unlock the rear attachment point by pushing it out of the hook, down

(2) Bring the strap to the horizontal position (C).

(3) Push the clip forward (D) and raise it on the back to release it from its slot (E).

Removal: (1) Remove the comfort paddings from the headband, by detaching the velcros on both the rear (see Fig. 1) and front paddings (see Fig. 2).

(1) Install the front padding by sliding the velcros on each side of the yellow front headband part (see Fig. 3)
