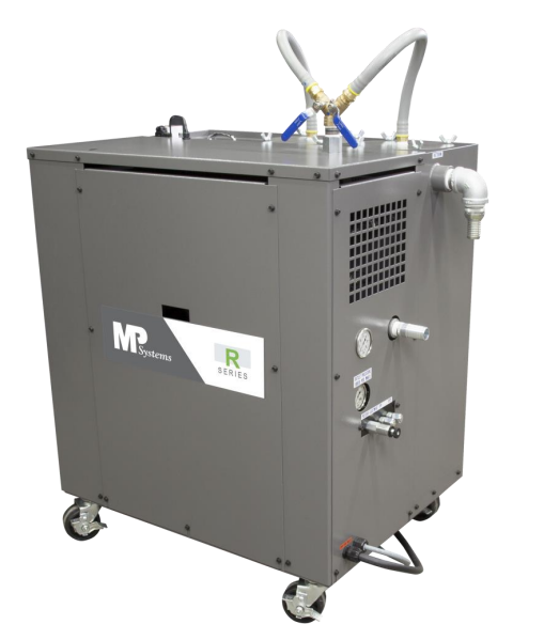

MP Systems Coolant System RFO5
Create an account to install this asset package.
Maintenance Plans for MP Systems Coolant System Model RFO5
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Coolant System Maintenance
Pre-Maintenance Safety Checks
Ensure power supply is switched to the ‘OFF’ position
Read safety instructions in Section 2. Safety Measures
Are all personnel qualified and following instructions?
Routine Maintenance Operations
Check for worn or damaged parts and replace if necessary
Use original or recommended parts for replacements
Was routine maintenance carried out with great care?
Electrical Components Check
1 Daily Hydraulic Circuit Maintenance
Pre-Maintenance Safety Checks
Ensure the power supply is switched to the ‘OFF’ position.
Read the safety instructions in Section 2. Safety Measures.
Personnel Requirements
Are you a qualified personnel?
Have you been trained for routine maintenance operations?
Hydraulic Circuit Maintenance
Inspect the hydraulic circuit filters.
Is filter replacement needed?
1 Weekly Hydraulic Circuit Maintenance
Pre-maintenance Safety Checks
Ensure the power supply is switched to the ‘OFF’ position.
Read the safety instructions in Section 2. Safety Measures.
Hydraulic Circuit Inspection
Visually check for leaks in hydraulic hoses.
Post-inspection Actions
Were any leaks detected in the hydraulic circuit?
Describe any issues found during the inspection.
Replace worn or damaged parts with original or recommended parts by MP SYSTEMS.
1 Monthly Coolant System Maintenance
Pre-Maintenance Safety Checks
Ensure the power supply is switched to the ‘OFF’ position.
Read the safety instructions in Section 2. Safety Measures.
General Maintenance Guidelines
Ensure operations are carried out by qualified personnel.
Use original or recommended parts for replacements.
Routine Maintenance Checks
Visually check the condition of the machine structure for areas of corrosion and/or dents.
Check the quality and cleanliness of the fluid in the hydraulic circuit tank.
Filter Bag Replacement
Pre-Maintenance Safety Checks
Ensure power supply is switched to ‘OFF’ position
Read safety instructions in Section 2. Safety Measures
Are you a qualified personnel following the instructions?
Filter Bag Replacement Procedure
Switch power to ‘OFF’ position
Close valve to filter vessel that will be changed
Let system pressure equalize for up to 30 seconds
Remove 4 wing nuts on filter cover
Parts for MP Systems Coolant System RFO5
Access the parts list for your equipment in MaintainX.
Filter Vessel O-Ring
M ORING
Clear Tank Cover
M COVER RF
Filter Bag 5 Micron
HB BAG ORING #2 5MC 7X32
High Pressure Motor Contactor
ED CA7 30 00 120
Supply Pump Motor Contactor
ED CA8 9 10120
Filter Vessel O-Ring
M ORING
Clear Tank Cover
M COVER RF
Filter Bag 5 Micron
HB BAG ORING #2 5MC 7X32
High Pressure Motor Contactor
ED CA7 30 00 120
Supply Pump Motor Contactor
ED CA8 9 10120
Filter Vessel O-Ring
M ORING
Clear Tank Cover
M COVER RF
Filter Bag 5 Micron
HB BAG ORING #2 5MC 7X32
High Pressure Motor Contactor
ED CA7 30 00 120
Supply Pump Motor Contactor
ED CA8 9 10120
