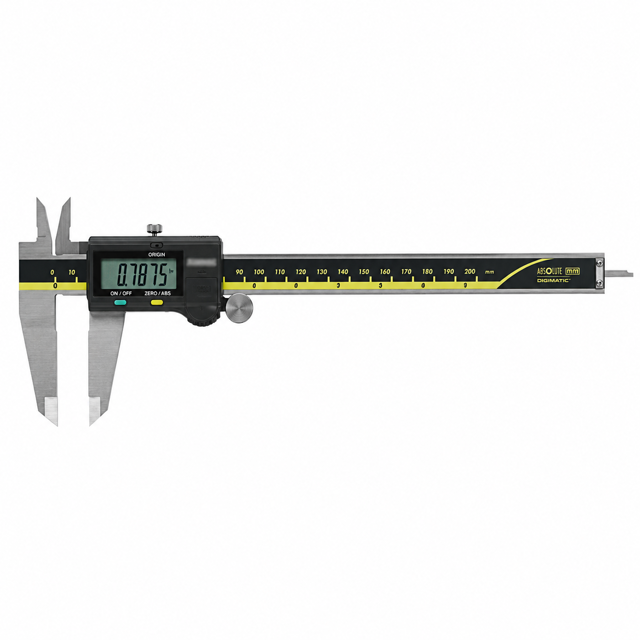

Mitutoyo Digimatic Caliper 500-173-30
Create an account to install this asset package.
Maintenance Plans for Mitutoyo Digimatic Caliper Model 500-173-30
Integrate maintenance plans directly into your work orders in MaintainX.
Digimatic Caliper Cleaning
Precautions after Use
Wipe away dirt from surfaces
Use a dry cloth or a cloth slightly moistened with alcohol
Apply a light coating of rust preventive oil before storage
18000 Hourly / 42 Monthly Battery Replacement
Battery Replacement Preparation
Ensure the device is powered off
Gather necessary tools for battery replacement
Battery Removal
Remove the battery cover
Disconnect the old battery
New Battery Installation
Connect the new battery
Secure the battery cover back in place
Parts for Mitutoyo Digimatic Caliper 500-173-30
Access the parts list for your equipment in MaintainX.
Silver Oxide Battery, SR44
938882
Connection Cable, 1 M
959149
Connection Cable, 2 M
959150
Hold Unit
959143
Silver Oxide Battery, SR44
938882
Connection Cable, 1 M
959149
Connection Cable, 2 M
959150
Hold Unit
959143
Silver Oxide Battery, SR44
938882
Connection Cable, 1 M
959149
Connection Cable, 2 M
959150
Hold Unit
959143
