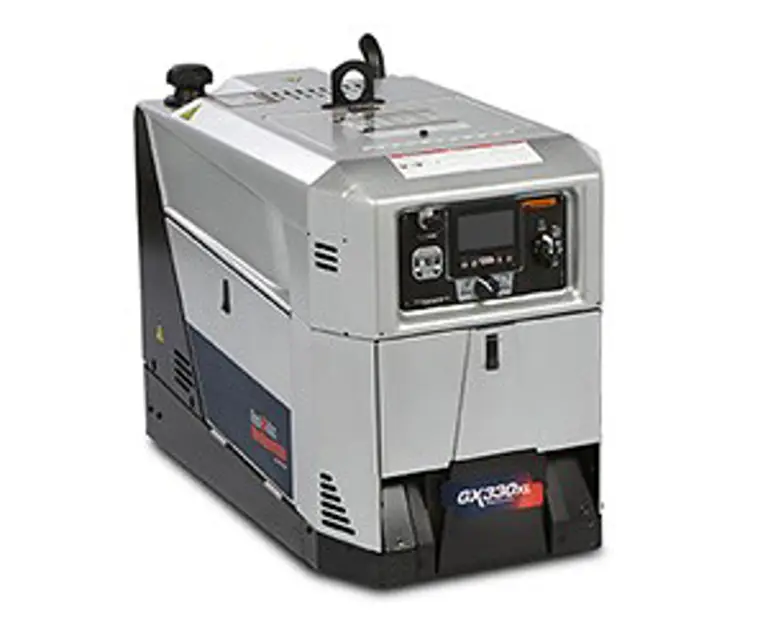

Lincoln Electric Welding Equipment's RED-D-ARC GX330XL is a robust and versatile welding machine designed for high-performance applications. This model combines advanced technology with user-friendly features, making it ideal for both professional and industrial welding tasks. Experience reliability and efficiency with the GX330XL in your operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Lincoln Electric Welding Equipment RED-D-ARC GX330XL

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Lincoln Electric Welding Equipment RED-D-ARC GX330XL

Create an account to install this asset package.

Maintenance Plans for Lincoln Electric Welding Equipment Model RED-D-ARC GX330XL

Integrate maintenance plans directly into your work orders in MaintainX.

Welder Generator Maintenance

- Blow out the generator and controls periodically with low pressure compressed air;

Run this procedure

Spark Plug Servicing

- Remove the spark plug cap

- Clean any dirt from around the spark plug base

- Use a plug wrench to remove the spark plug

- Visually inspect the spark plug. Discard them if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused

- Measure the plug gap with a feeler gauge. Correct as necessary by bending the side electrode

- Check that the spark plug washer is in good condition and thread the spark plug in by hand to prevent cross-threading

- After the spark plug is seated, tighten with a spark plug wrench to compress the washer

- If installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer

- If reinstalling a used spark plug, tighten 1/8 - 1⁄4 turn after the spark plug seats to compress the washer

Run this procedure

Battery Maintenance

- Keep the battery clean by wiping it with a damp cloth when dirty

- After cleaning, flush the outside of the battery, the battery compartment, and surrounding areas with clear water

- Coat the battery terminals lightly with petroleum jelly or a non-conductive grease to retard corrosion; - Keep the battery clean and dry

- Moisture accumulation on the battery can lead to more rapid discharge and early battery failure

- If battery cells are low, fill them to the neck of the filler hole with distilled water and recharge. If one cell is low, check for leaks

- When you charge, jump, replace, or otherwise connect battery cables to the battery, be sure the polarity is correct;

Run this procedure

Fuel Filter Replacement

- Check the fuel filter for water accumulation or sediment

- Replace the fuel filter if it is found with excessive water accumulation or sediment;

Run this procedure

Air Filter Pre-cleaner Service

- Loosen the cover retaining knob and remove the cover

- Remove the pre-cleaner from the paper element

- Wash the pre-cleaner in warm water with detergent. Rinse the pre-cleaner thoroughly until all traces of detergent are removed. Squeeze out excess water (do not wring.) Allow the pre-cleaner to dry

- Reinstall the pre-cleaner over the paper element

- Reinstall the air cleaner cover. Secure the cover with the cover retaining knob;

Run this procedure
