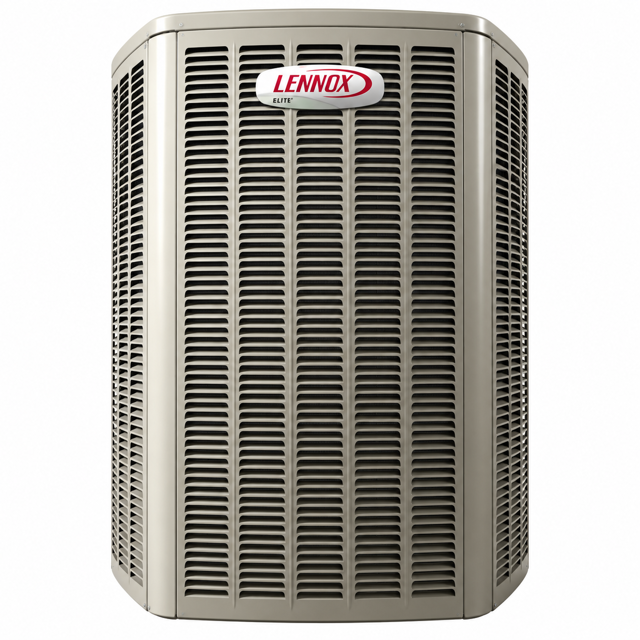

Lennox HVAC Unit EL16XC1S036

Inspect component wiring for loose, worn or damaged connections.

Check for any rubbing or pinching of wires.

Confirm proper voltage of outdoor unit.

Confirm proper amperage of outdoor unit.

Check cleanliness of outdoor fan and blade assemblies.

Check condition of fan blades for cracks.

Clean or replace fan blades if necessary.

Turn on the air conditioner and check operating functions such as start-up and shut-off operation.

Check for unusual noises or odors

Measure system pressures as needed

Check the refrigerant charge per the charging sticker information on the outdoor unit

Verify that system total static pressure is within specific operating parameters

Electrical and Wiring Inspection

Inspect component wiring for loose, worn or damaged connections.

Confirm proper voltage of indoor unit.

Confirm proper amperage of indoor unit.

Air Filter and Blower Inspection

Inspect air filters in indoor unit.

Were air filters cleaned or replaced?

Check the cleanliness of indoor blower.

Ensure the use of a regulator that can control pressure down to 1 or 2 psig (6.9 to 13.8 kPa) when using high pressure gas.

Verify that the leak detector is capable of sensing HFC refrigerant.

Ensure refrigerant is used and recovered responsibly to prevent personal injury or death.

Weigh in a trace amount of HFC-410A (maximum of two ounces or three pounds pressure)
