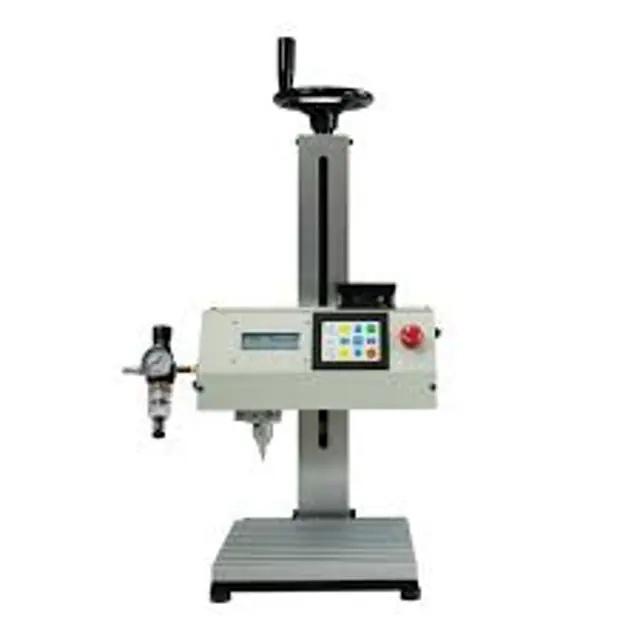

Kwik Mark Benchtop Dot Peen Marking Machine KM64

Work Safely. Always wear safety glasses near the machine.

Unplug the power supply and air hoses before beginning any maintenance or cleaning.

Most marking quality issues are due to dirty or worn part(s) in the Marking Head Assembly. The maintenance operations listed here are intended as a guideline. If the machine is constantly being used or in a highly dusty or dirty environment these operations may need to be performed more frequently. Clean or replace components as necessary.

Never lubricate any part of the Marking Head Assembly.

Inspect every 3 months or 100 hours of operation.

The impact marking head requires periodic cleaning. The head should be disassembled every 100 hours of operation cleaned with alcohol and replaced back in its mount.

Look for cracks around center hole.

Work Safely. Always wear safety glasses near the machine.

Unplug the power supply and air hoses before beginning any maintenance or cleaning.

The pneumatic filter may be replaced as required. This will depend on each factory floor condition. The filter is inside of a clear polycarbonate bowl allowing visual inspection from time to time. It is suggested that the filter be cleaned as soon as grit and grit and particulate matter accumulate. If any water accumulates, disconnect the air supply to drain.

Work Safely. Always wear safety glasses near the machine.

Unplug the power supply and air hoses before beginning any maintenance or cleaning.

Apply a general purpose light grease directly to the lead screw acme thread above the nut.

This may be applied as required. Because of the near zero duty cycle, most applications will not require any lubricant for the life of the equipment.
