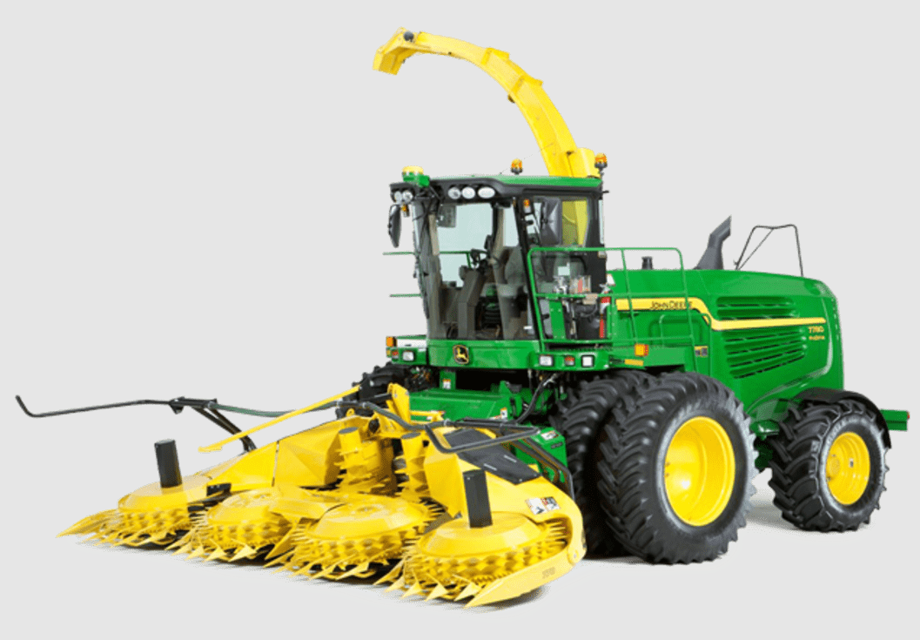

John Deere Self-Propelled Forage Harvester 7780
Need answers fast?
Explore the manual using AI.
The John Deere Self-Propelled Forage Harvester 7780 is a high-performance agricultural machine designed for efficient crop harvesting. With advanced technology and robust construction, it delivers exceptional productivity and reliability in the field, making it an essential asset for modern farming operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for John Deere Self-Propelled Forage Harvester 7780
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
John Deere Self-Propelled Forage Harvester 7780
Create an account to install this asset package.
Maintenance Plans for John Deere Self-Propelled Forage Harvester Model 7780
Integrate maintenance plans directly into your work orders in MaintainX.
As required Self-Propelled Forage Harvester Replacement
Cab Air Filter replaced
Cab Recirculation Air Filter replaced
Engine Primary Air Filter replaced
Engine Secondary Air Filter replaced
Hydraulics (Ivloc) Suction Filter replaced
Hydraulics Hydrostatic Drive replaced
Transmission Oil Filter replaced
Hydraulics Intake Filter Ivloc replaced
Hydraulic Return Oil Filter replaced
250 Hourly Self-Propelled Forage Harvester FiltersMaintenance
Clean Cab Air Filter
Clean Cab Recirculation Air Filter
Replace Engine Oil Filter
First 100 Hours Self-Propelled Forage Harvester Replacement
Hydraulics (Ivloc) Suction Filter replaced
Hydraulics Hydrostatic Drive replaced
Transmission Oil Filter replaced
Hydraulics Intake Filter Ivloc replaced
Hydraulic Return Oil Filter replaced
Engine Oil Filter replaced
Sign off on the replacement procedure
1500 Hourly Self-Propelled Forage Harvester Filters Replacement
Engine Primary Air Filter replaced?
Engine Secondary Air Filter replaced?
Engine Diesel Particulate Filter replaced (every 4500 hours)?
Sign off on the filter replacement
500 Hourly Self-Propelled Forage Harvester Replacement
Hydraulics (Ivloc) Suction Filter replaced
Hydraulics Hydrostatic Drive replaced
Transmission Oil Filter replaced
Hydraulics Intake Filter Ivloc replaced
Hydraulic Return Oil Filter replaced
Engine Primary Fuel Filter replaced
Engine Secondary Fuel Filter replaced
Sign off on the replacement procedure
Parts for John Deere Self-Propelled Forage Harvester 7780
Access the parts list for your equipment in MaintainX.
Engine Diesel Particulate Filter
RE541836
Cab Air Filter
AH115833
Hydraulic Return Oil Filter
AL203060
Engine Oil Filter
RE572785
Hydraulics (Ivloc) Suction Filter
AZ62405
Engine Diesel Particulate Filter
RE541836
Cab Air Filter
AH115833
Hydraulic Return Oil Filter
AL203060
Engine Oil Filter
RE572785
Hydraulics (Ivloc) Suction Filter
AZ62405
Engine Diesel Particulate Filter
RE541836
Cab Air Filter
AH115833
Hydraulic Return Oil Filter
AL203060
Engine Oil Filter
RE572785
Hydraulics (Ivloc) Suction Filter
AZ62405
