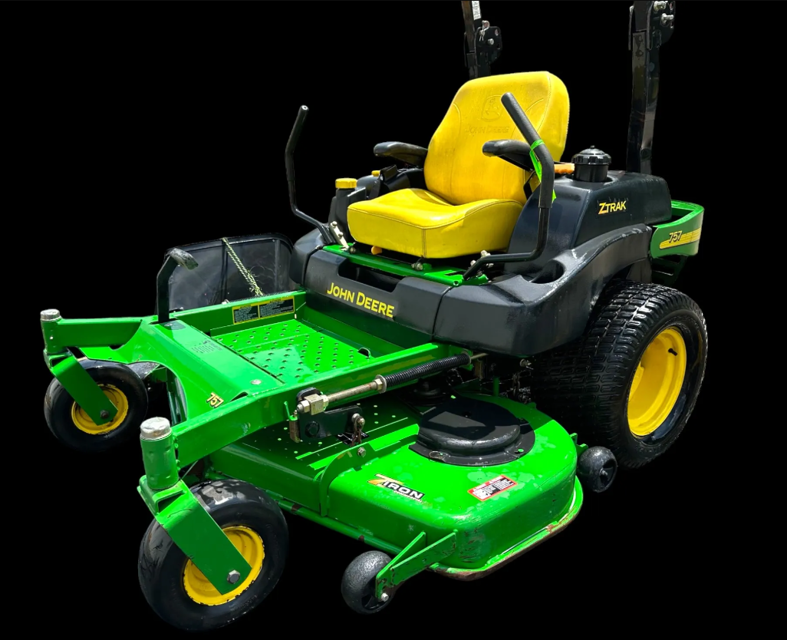

John Deere Mid-Frame Z-TrakTM 757
Need answers fast?
Explore the manual using AI.
The John Deere Mid-Frame Z-TrakTM 757 is a robust commercial-grade zero-turn mower designed for efficiency and performance. With its powerful engine and advanced cutting technology, this model is ideal for maintaining large lawns and landscapes, ensuring a professional finish with every use.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for John Deere Mid-Frame Z-TrakTM 757
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
John Deere Mid-Frame Z-TrakTM 757
Create an account to install this asset package.
Maintenance Plans for John Deere Mid-Frame Z-TrakTM Model 757
Integrate maintenance plans directly into your work orders in MaintainX.
50 Hourly / Yearly Maintenance
Grease front caster spindles
Grease mower deck lift support blocks
Grease pump idler pivot
Grease mower deck spindles
Grease mower deck idler pivot
Grease mower deck push arms
Grease height-of-cut detent
Grease park brake linkage pivots
Check pump drive belt for damage or cracking
Yearly Maintenance
Replace air cleaner elements
Inspect fuel lines
Replace fuel filter
Replace and gap spark plugs
Clean brake actuator cavities
Change engine oil and filter
Change hydraulic oil and filter
Mulch on Demand Mower Deck: Remove handle and lubricate pivot with John Deere Multi-Purpose SD Polyurea grease
Sign off on the yearly maintenance
Initial 5 Hours Maintenance
Change engine oil and filter
Check pump drive belt
Check and tighten drive wheel hardware to specification
Check and adjust park brake
After initial 15 hours
Check and adjust mule drive belt tension
500 Hourly Maintenance
Change hydraulic oil and filter
Maintenance in every 1000 hours basis
Replace and gap spark plugs, if not replaced within last year
Replace fuel filter, if not replaced within last year
Sign off on the 500 Hourly Maintenance
300 Hourly Maintenance
Replace primary air cleaner element
Clean and gap spark plugs
Adjust valve clearance
Clean and lap valve seat surface
Clean combustion chamber
Check and adjust PTO clutch air gap
Sign off on the 300 Hourly Maintenance
Parts for John Deere Mid-Frame Z-TrakTM 757
Access the parts list for your equipment in MaintainX.
Fuse
57M7120
Spark Plug
M805853
Belts
TCU13196
Mower Blades
TCU15881
Mower Blades
M144652
Fuse
57M7120
Spark Plug
M805853
Belts
TCU13196
Mower Blades
TCU15881
Mower Blades
M144652
Fuse
57M7120
Spark Plug
M805853
Belts
TCU13196
Mower Blades
TCU15881
Mower Blades
M144652
