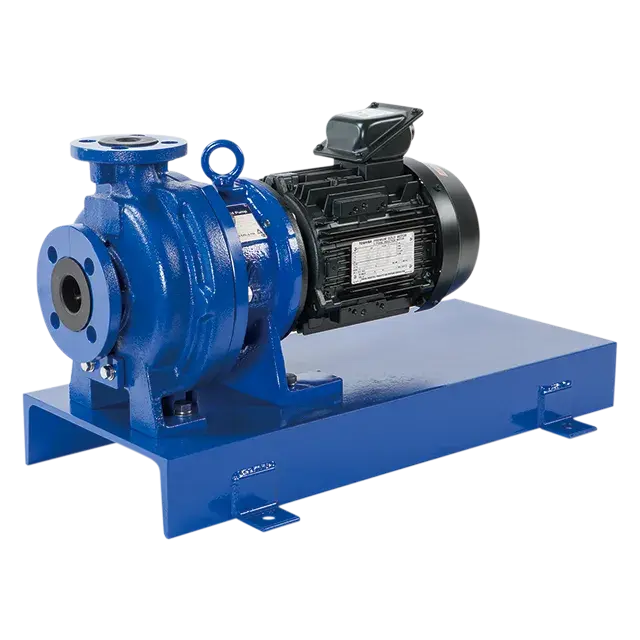

Iwaki Magnetic Drive Pump MDM-1516EKK

Verify that the inspection area is clear of unnecessary personnel

Handle the outer drive magnet and inner magnet capsule with caution

Ensure magnets are kept away from electronic devices

Inspect internal bushings for wear and tear

Check plastic components for any damage

Check that the pump operates smoothly without abnormal sounds or vibration.

Suction Tank and Pressure Check

Enter the level of the liquid in the suction tank.

Discharge Pressure and Current Verification

Enter the current measured during operation.

Is the discharge pressure and current within the specifications indicated on the motor and pump nameplates?

Is there a stain in the liquid-contacting section?

Clean the liquid-contacting section if stained.

Are there any cracks in the front casing liner?

Replace the front casing liner if any cracks are observed.

Is there wear or crack on the inboard thrust collar?

Contact distributor if wear or crack is observed on the inboard thrust collar.

Is there expansion or wear of the o-ring?

Replace the o-ring if it is damaged.

Check for scoring on the outer magnet.

Is the magnet mounted normally?

Is the hexagonal socket set screw loose?

Reinstall magnet on motor shaft.

Fasten hexagonal socket set screws.

Is the inner perimeter of magnet & motor shaft concentric?

Inspection of Containment Shell

Check for scoring on inner diameter

Are there any cracks in liquid-containing section?

Containment Shell Cover Inspection

Is there scoring on the containment shell cover?

Improper installation in frame?
