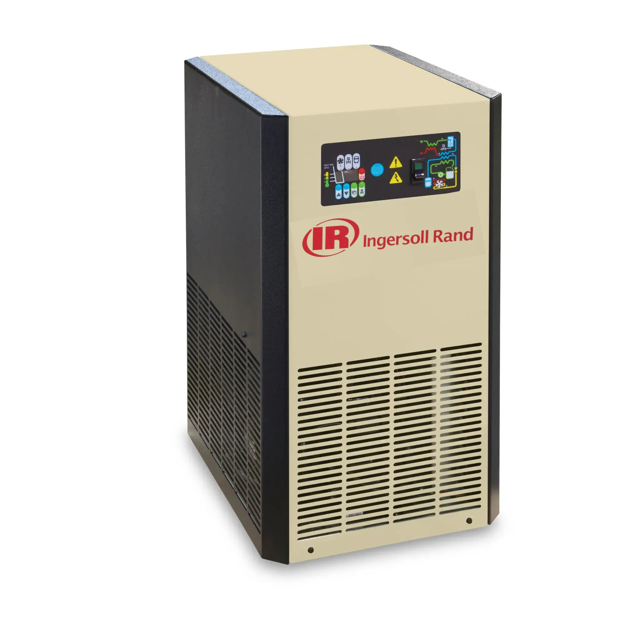

Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Dryer D212ECA200

Need answers fast?
Explore the manual using AI.

Explore Maintenance Plans

The Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Dryer D212ECA200 is designed to provide reliable and efficient moisture removal from compressed air systems. This advanced dryer model enhances performance and energy savings, making it an ideal choice for industrial applications requiring consistent air quality.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Dryer D212ECA200

Create an account to install this asset package.

Maintenance Plans for Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Dryer Model D212ECA200

Integrate maintenance plans directly into your work orders in MaintainX.

1 Weekly / 40 Hourly Dryer Check

Warning: Ensure no parts of the system are under pressure or electrically powered before starting maintenance.

LED's on the control panel display are functioning

Condensate is drained regularly

Run this procedure

1 Yearly / 2000 Hourly Dryer Maintenance

Before attempting any maintenance operation, make sure that, no parts of the system are:

1. Under pressure.

2. Electrically powered.

• Check if the flexible tube used for condensate drainage is damaged and replace it if necessary.

• Replace the Service Unit of the Electronic drain discharge (If present).

• Check if all connecting pipes are properly tightened and fixed.

• Check glycol circuit.

• At the end of the above mentioned operations, check if the dryer is working properly. This includes compressor, circulating pump and condensor fan.;

Run this procedure

1 Monthly / 200 Hourly Dryer Maintenance

Safety Warning: Ensure no parts of the system are under pressure or electrically powered before starting maintenance.

Condenser cleaned with compressed air without damaging the condenser fins.

Dryer working properly after maintenance, including compressor, circulating pump and condensor fan.

Check the condition of filters installed with the dryer

Filters replaced as needed.

Drain operation checked, screen for solenoid drains inspected for debris.

Sign off on the dryer maintenance

Run this procedure
