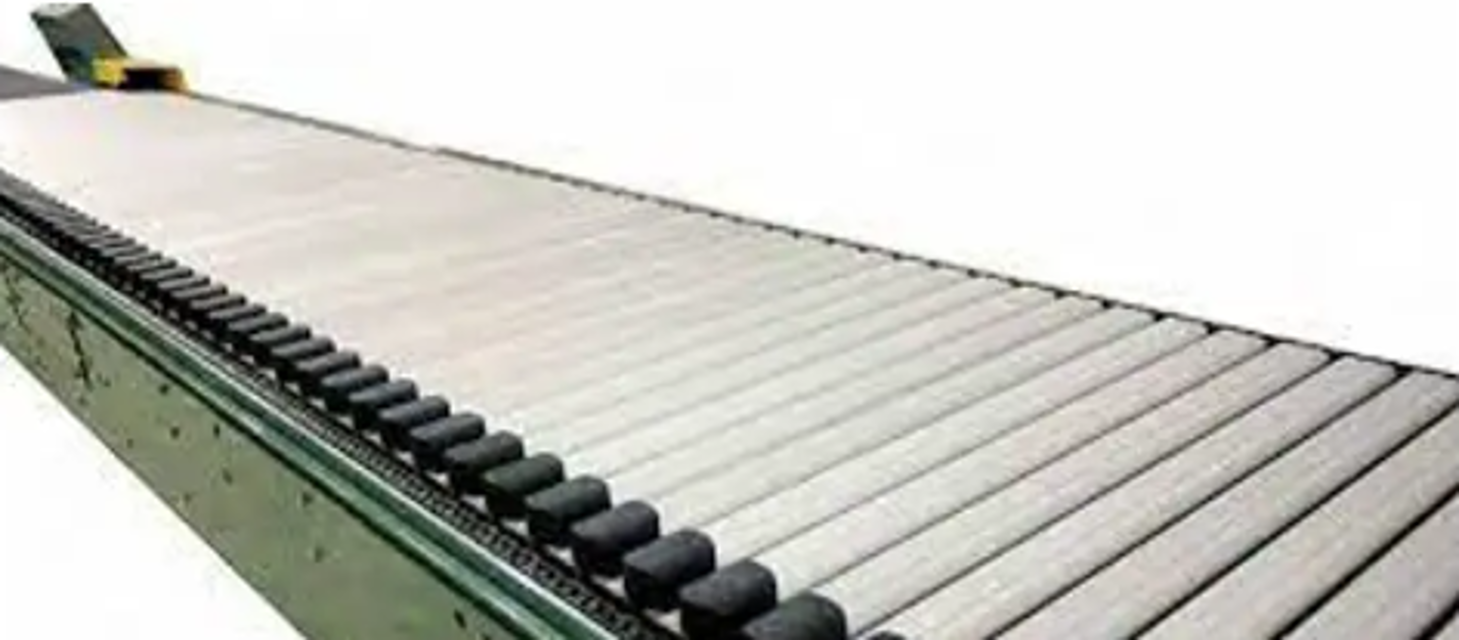

Hytrol High Speed Sortation Conveyor Prosort 131

Check Alignment with Chain Guards

NOTE: All electric divert servo motors are paired with the associated drives at the factory. Connecting motors to the wrong drive may have an adverse effect on the divert operation and could result in physical damage to the sorter. Always connect the drives to the factory paired motors to prevent damage.

Diverts are fully in either the home or diverted position

Diverts are in the home position after removing the enable signal to the Smart Prox and flagging the Smart Prox to trigger a move operation

Each time diverts are powered on, the diverter moves slowly until it finds the home position

The “All Systems Go” signal is on before running the sorter

The Smart Prox is set properly. The face of the prox should be set just out of the shoe pin guide path in the switch guide

Sign off on the Electric Divert Switch Checklist

ProSort sections should be installed and aligned before starting

Manually pivot the switch back and forth between the non-divert and divert position checking for a free and smooth pivoting movement

Turn air pressure on and verify that each divert switch is in, or moves to, the home (non-divert) position

Check to insure that the smart prox is set properly

Sign off on the Pneumatic Divert Switch Checklist
