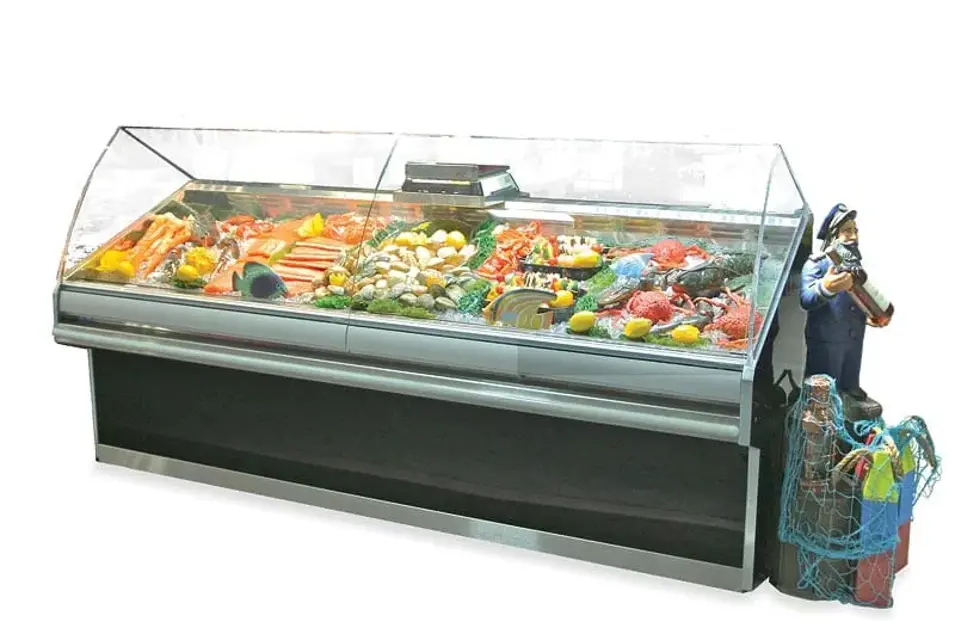

Hussmann Open Fish Sevice Case DSFN-EP-5-R

Create an account to install this asset package.

Maintenance Plans for Hussmann Open Fish Sevice Case Model DSFN-EP-5-R

Integrate maintenance plans directly into your work orders in MaintainX.

Plexiglass and Acrylic Care

Warning: Improper cleaning can degrade the quality of the surface

Did you use the correct cleaning agents?

Did you use the correct cleaning cloths?

Did you notice any micro scratching on the surface?

Describe the condition of the surface

Sign off on the plexiglass and acrylic care

Run this procedure

6 Monthly Open Fish Service Case Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Is the discharge honeycomb clean?

Is the condenser coil free of accumulated dirt?

Is the condensate evaporator pan free of dirt accumulation?

Poor circulation of air through the condenser coil will result in poor refrigeration performance.

Is the power supply to the equipment reliable?

Is the shelf loading appropriate? Overstocking will adversely affect case performance.

Is the store Humidity Control working properly?

Are there any outside doors/windows allowing moisture into the store?

Run this procedure

Fan Blade Replacement

WARNING! ALWAYS DISCONNECT THE ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT OF THIS REFRIGERATOR. THIS INCLUDES, BUT IS NOT LIMITED TO SUCH ITEMS AS FANS AND THERMOSTATS.

The evaporator fan is located directly under the deck pan.

Fan blade needs servicing?

ALWAYS REPLACE THE FAN BLADE WITH THE RAISED EMBOSSING SIDE OF THE BLADE INSTALLED TOWARD THE MOTOR.

Sign off on the fan blade replacement

Run this procedure

Non-Glare Glass Cleaning

1. The high optical clarity of this glass is possible due to special coatings on the glass surface itself.

2. To preserve this coating and the optical clarity, keep the glass clean. 3. Water is the only solution recommended to be used to clean the non-glare glass.

4. The damage to the glass from improper, caustic solutions is irreparable.

5. In addition to cleaning the glass with the recommended product, there are precautions that should be taken when working and cleaning the inside of the case.

• When cleaning the inside of the cases, we recommend that the glass be fully opened and covered to prevent to prevent solutions from splashing onto the glass and ruining the coating on the inside.;

Run this procedure

Case Cleaning

Warning: Shut off fan before cleaning. Do not use water hoses, chlorinated cleaner, abrasives or steel wool scouring pads, cleaning or sanitizing solution that has an oil base or an ammonia base.

Fan shut off before cleaning?

Interior bottom wiped with domestic soap or detergent based cleaners?

Exterior cleaned with water and a mild detergent?

Interior wiped with damp non-abrasive cloth?

Visible debris surrounding or on top of the drain location cleaned?

All surfaces scrubbed thoroughly with soap and hot water?

Rinsed with hot water without flooding?

Sanitizing solution applied according to Hussmann’s directions?

Run this procedure
