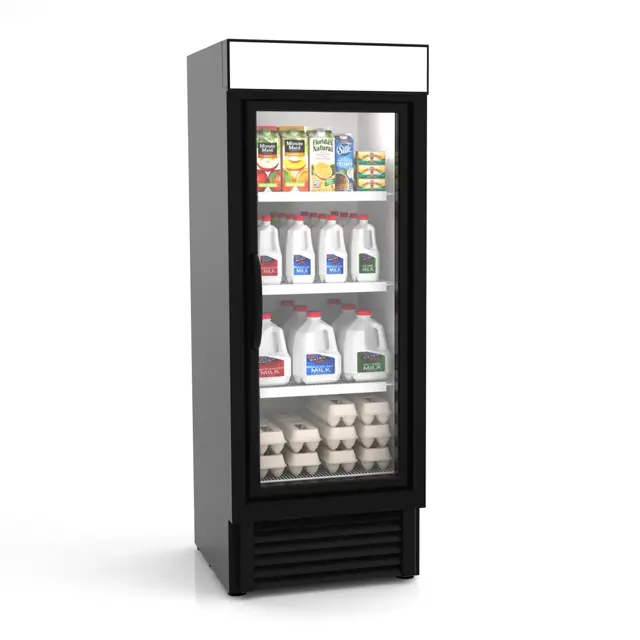

Hussmann Merchandiser With Hinged Doors ARV-300

Create an account to install this asset package.

Maintenance Plans for Hussmann Merchandiser With Hinged Doors Model ARV-300

Integrate maintenance plans directly into your work orders in MaintainX.

Evaporator Housing Maintenance

Warning: Ensure the thermostat is in the 'OFF' position before starting the procedure.

Is the evaporator fan motor energized?

If the fan motor is energized, open the door or disconnect the unit from the main power source.

Remove the fasteners to lower the evaporator housing for cleaning and/or service.

Note: Evaporator fan will cycle 'OFF' during defrost cycle.

Evaporator fan will delay approximately 5 to 10 minutes after each defrost cycle and initial start-up on Low Temperature Models (ARL's).

Sign off on the evaporator housing maintenance

Run this procedure

1 Monthly Condenser Cleaning

The air cooled condenser should be cleaned regularly. A dirty condenser restricts air flow, causing decreased refrigeration efficiency. (Clean every month or as required).

Main power supply disconnected?

Louver grill from front of lower cabinet removed?

Used a bristle brush to loosen the dust and dirt and removed with a vacuum cleaner?

When cleaning condenser line beware of fin edges as they are sharp.

Is the merchandiser located in an area susceptible to grease collecting on the condenser?

If yes, scrubbed with a solution of warm water and detergent?

Care should be taken to keep solution away from wiring and electrical components.

Fan guard out for fan blades and condenser shroud cleaning, then re-installed the fan guard (optional)?

Run this procedure

Merchandiser Cleaning

• Long life and satisfactory performance of any equipment is dependent upon the care given to it.

• To ensure efficient operation, proper sanitation and minimum maintenance, the cabinet should be thoroughly cleaned, debris removed and the interior cleaned regularly.

CAUTION! TO AVOID PERSONAL INJURY OR DAMAGE TO ELECTRICAL COMPONENTS, ALWAYS DISCONNECT UNIT FROM MAIN POWER SOURCE BEFORE SERVICING OR CLEANING

Cabinet Surfaces (Interior and Exterior)

• To preserve finish, the cabinet should be cleaned with a mild solution of soap and warm water only, using a soft cloth or sponge.

• DO NOT use any type of caustic soap, abrasive cleaner, or steel wool scouring pads which can mar the cabinet finish.;

Run this procedure
