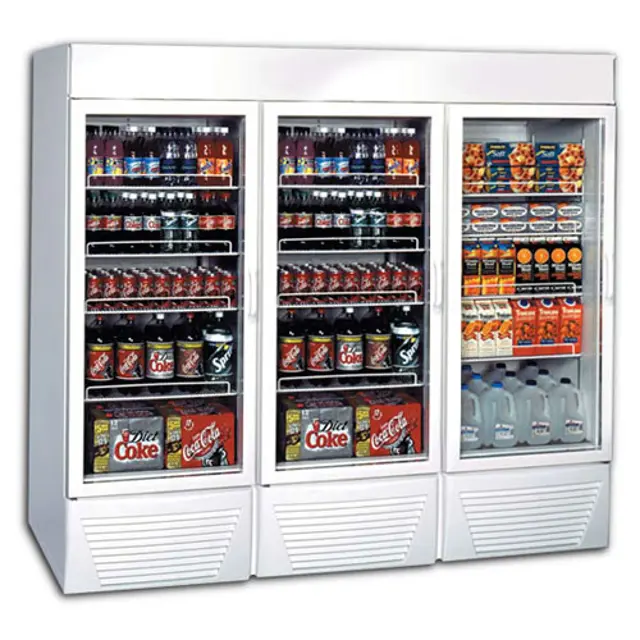

The Hussmann Merchandiser with Hinged Doors ARL-1050 is a reliable refrigeration solution designed for optimal product display and preservation. This model features advanced temperature control and energy-efficient components, making it ideal for retail environments. Ensure peak performance with regular maintenance and quality spare parts.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Hussmann Hussmann Merchandiser With Hinged Doors ARL-1050 ARL-1050

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Hussmann Hussmann Merchandiser With Hinged Doors ARL-1050 ARL-1050

Create an account to install this asset package.

Maintenance Plans for Hussmann Hussmann Merchandiser With Hinged Doors ARL-1050 Model ARL-1050

Integrate maintenance plans directly into your work orders in MaintainX.

Evaporator Housing Maintenance

Warning: Ensure the thermostat is in the 'OFF' position. This disconnects the condensing unit only.

Note: The evaporator fan motor will be energized until the door is opened or the unit is disconnected from the main power source.

Is the evaporator fan motor de-energized?

Remove the fasteners to lower the evaporator housing for cleaning and/or service.

Have the fasteners been removed and the evaporator housing lowered for cleaning and/or service?

Note: Evaporator fan will cycle 'OFF' during defrost cycle. Evaporator fan will delay approximately 5 to 10 minutes after each defrost cycle and initial start-up on Low Temperature Models (ARL's).

Has the evaporator fan cycled 'OFF' during the defrost cycle?

Sign off on the evaporator housing maintenance

Run this procedure

Merchandiser Cleaning

• Long life and satisfactory performance of any equipment is dependent upon the care given to it.

• To ensure efficient operation, proper sanitation and minimum maintenance, the cabinet should be thoroughly cleaned, debris removed and the interior cleaned regularly.

CAUTION! TO AVOID PERSONAL INJURY OR DAMAGE TO ELECTRICAL COMPONENTS, ALWAYS DISCONNECT UNIT FROM MAIN POWER SOURCE BEFORE SERVICING OR CLEANING

Cabinet Surfaces (Interior and Exterior)

• To preserve finish, the cabinet should be cleaned with a mild solution of soap and warm water only, using a soft cloth or sponge.

• DO NOT use any type of caustic soap, abrasive cleaner, or steel wool scouring pads which can mar the cabinet finish.;

Run this procedure

1 Monthly Condenser Cleaning

The air cooled condenser should be cleaned regularly. A dirty condenser restricts air flow, causing decreased refrigeration efficiency. (Clean every month or as required).

Main power supply disconnected?

Louver grill removed from front of lower cabinet?

Used a bristle brush to loosen the dust and dirt and removed with a vacuum cleaner?

When cleaning condenser line beware of fin edges as they are sharp.

Is the merchandiser located in an area susceptible to grease collecting on the condenser?

Scrubbed with a solution of warm water and detergent?

Care should be taken to keep solution away from wiring and electrical components.

Fan guard taken out for fan blades and condenser shroud cleaning, then re-installed?
