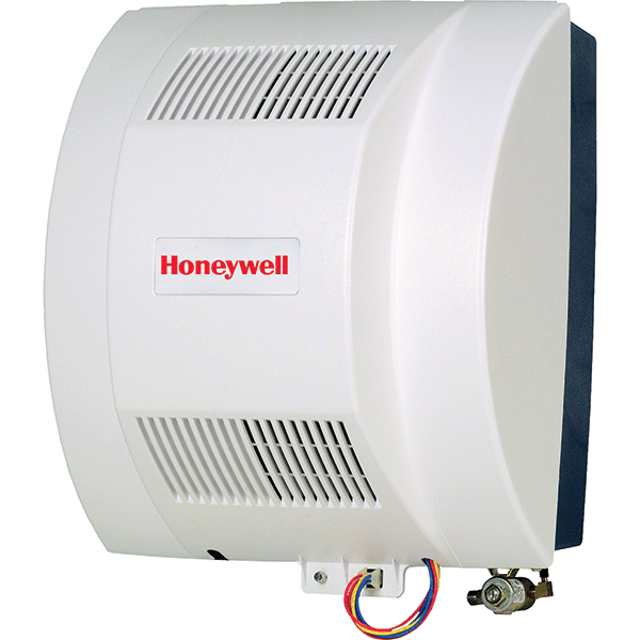

Honeywell Powered Flow-Through Humidifier HE365H8908

CAUTION: Personal Injury or Equipment Hazard. Power Supply can cause electrical shock or equipment damage.

Disconnect the power and turn off the humidifier water supply

Remove the humidifier pad assembly from the humidifier by grasping the tray and pulling it toward you

Pull one side of the humidifier pad assembly frame toward you and remove the tray from the frame

Gently pinch the water nozzle catches inward until the water nozzle can be lifted off the tray

Slide the humidifier pad out of the frame

Carefully scrape any mineral deposits from the tray and frame. Be sure the frame drain hole has nothing blocking it

Check the humidifier pad and if excessive mineral deposits are present, replace with a new HC26E Antimicrobial Pad

Is the humidifier power and water supply turned on?

Set the humidity control to its highest setting

Set the thermostat to 10°F (12°C) above the room temperature

Is water flowing out of the drain hose?

NOTE: The furnace blower must be operating for the humidifier to work.

Reset the thermostat to a comfortable setting for automatic operation

Reset the humidity control to a comfortable setting for automatic operation
