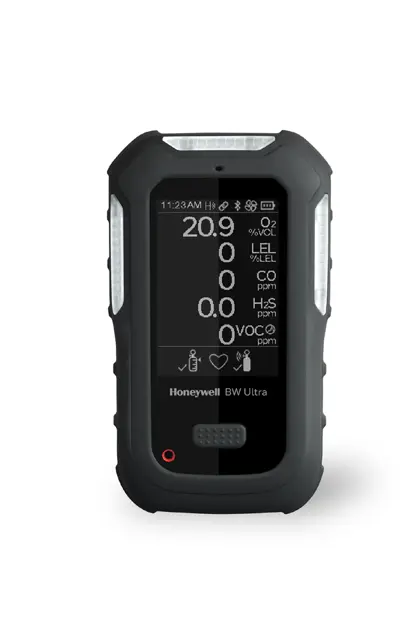

Honeywell Portable Five-gas Detector with Internal Pump BW Ultra

Before you begin: You should have the IR Connectivity Kit (sold separately) to transfer the data from a computer to the detector.

Note: If connected to the Internet, Safety Suite DC or Safety Suite DM provides the latest firmware automatically. If not connected to the internet, click on Update and manually add the latest firmware from Honeywell's official website: sps.honeywell.com/us/en/software

Download Safety Suite Device Configurator (SSDC) from the following website: sps.honeywell.com/us/en/software/safety and install.;(Internet service required)

For more information refer to the Safety Suite User Guide.

Go to the Device Inventory/List and click on the Refresh button to see the connected devices.

Enable the checkbox next to the device serial number and above a blue toolbar will appear.

Select the Update firmware button.

Follow the status of the process on the Notifications queue.

Warning: Use only soft, damp cloth for cleaning.

Exterior of the detector cleaned

Did you use water-based (non-alcohol) cleaners?

Avoided use of soaps, solvents, or polishes

Sign off on the detector cleaning

Warning: Follow the instructions carefully to avoid any damage to the battery.

Battery recharged before exhaustion?

Enter the temperature at which the battery is being charged

Note: A rechargeable battery’s runtime decreases approximately 20% over a two-year period of typical use.

Upload a photo of the charging adapter used

Enter the time taken to fully charge the battery

Was the power on while charging?

Sign off on the battery maintenance
