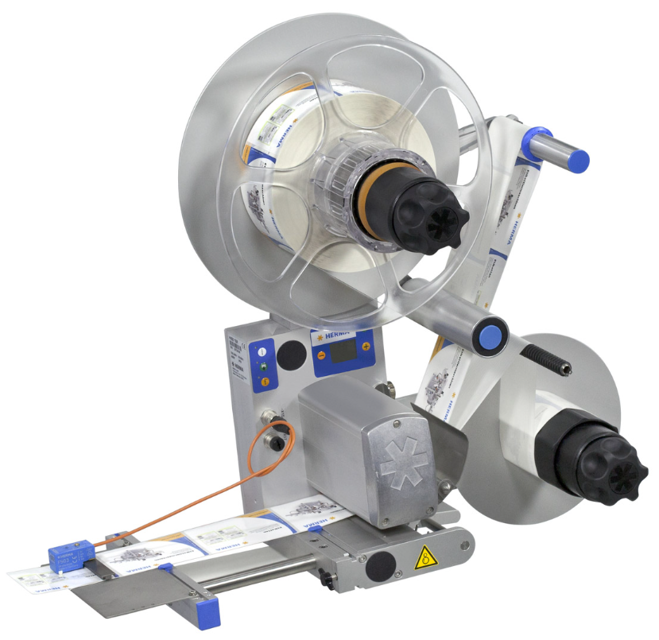

HERMA Label Applicator H400 RV16
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for HERMA Label Applicator H400 RV16
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
HERMA Label Applicator H400 RV16
Create an account to install this asset package.
Maintenance Plans for HERMA Label Applicator Model H400 RV16
Integrate maintenance plans directly into your work orders in MaintainX.
Label Applicator Cleaning
Pre-Cleaning Safety Measures
Disconnect machine from mains
Cleaning Materials
Ensure cleaning materials do not attack metal, rubber, or plastic parts
Machine Parts Cleaning
Ensure all machine parts that touch the products are free from adhesive or label fragments
Remove adhesive residue with a label solvent
Clean label sensing/scanning unit with a soft cloth only
Rollers Cleaning
Drive Unit Replacement
Safety Precautions
Ensure the applicator is voltage-free and the mains plug is disconnected
Drive Unit Removal
Loosen the large hexagon bolt of the pedestal mounting
Retract the applicator housing on the rail to the front until the back of the applicator housing can be opened
Open the back of the applicator housing (three screws)
Loosen the motor cables
Remove the distributor circuit board
Loosen three screws and remove the toothed-belt tensioner
Parts for HERMA Label Applicator H400 RV16
Access the parts list for your equipment in MaintainX.
Transport Roller Complete 16
70000055
Swivel Lever Complete
600132
Clamp Piece Complete
600138
Roller Complete
600134
Toothed Belt
611974
Transport Roller Complete 16
70000055
Swivel Lever Complete
600132
Clamp Piece Complete
600138
Roller Complete
600134
Toothed Belt
611974
Transport Roller Complete 16
70000055
Swivel Lever Complete
600132
Clamp Piece Complete
600138
Roller Complete
600134
Toothed Belt
611974
