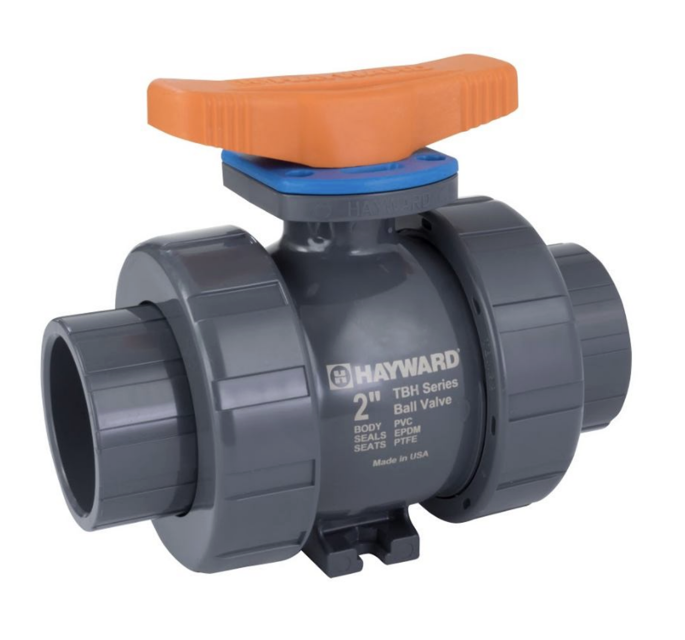

Hayward Ball Valve TBH1050ASTV0000

Need answers fast?
Explore the manual using AI.

Hayward Ball Valve TBH1050ASTV0000
Hayward Ball Valve TBH1050ASTV0000

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Hayward Ball Valve TBH1050ASTV0000

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Hayward Ball Valve TBH1050ASTV0000

Hayward Ball Valve TBH1050ASTV0000

Create an account to install this asset package.

Maintenance Plans for Hayward Ball Valve Model TBH1050ASTV0000

Integrate maintenance plans directly into your work orders in MaintainX.

Valve Seals Maintenance

Check mark

3.3 Replacing Internal Seats and Seals

Check mark

Ensure safety precautions are followed

Check mark

Depressurize and drain system with valve handle in partially open position (45°)

Check mark

Remove assembly nuts from valve body by rotating counterclockwise

Check mark

Remove valve body from system

Check mark

Rotate handle to fully closed position

Check mark

Remove handle and lockplate

Check mark

Remove seal retainer from body by engaging hex on seal retainer and rotating counter-clockwise

Check mark

Remove ball from body by reaching inside closed end bore of body and pushing ball towards open end of valve body

Run this procedureArrow right

Valve O-Ring Maintenance

Check mark

3.2 Replacing End Connector O-Rings

Check mark

Warnings

Check mark

Is the system depressurized and drained with valve handle at 45° position?

Check mark

Remove assembly nuts from valve body by rotating counterclockwise.

Check mark

Remove valve body from system.

Check mark

Using a plastic pick, carefully remove the old seals.

Check mark

Clean o-ring grooves with a soft brush or cloth.

Check mark

Install new o-rings by gently pressing o-ring into groove until o-ring is fully seated.

Check mark

Install valve cartridge between end connectors, match nuts to body threads and turn nut clockwise to thread onto body.

Run this procedureArrow right

Valve Startup Maintenace

Check mark

2.0 STARTUP AND OPERATION

Check mark

Operate valve to 45° (i.e. ½ open) position

Check mark

Slowly purge air from system as line fills with liquid

Check mark

Check for leaks around valve handle, stem, and end connections

Check mark

Check for proper valve operation

Check mark

If any leaks are present, or valve does not perform properly, refer to troubleshooting guide

Check mark

Depressurize and drain system prior to performing any maintenance

Check mark

WARNING

Check mark

Ensure system is depressurized and drained prior to installing valve or performing maintenance

Run this procedureArrow right

Valve Inspection

Check mark

2.0 STARTUP AND OPERATION

Check mark

Depressurize and drain the system

Check mark

Check valve for leaks

Check mark

Inspect valve for external damage

Run this procedureArrow right

Valve Connection Check

Check mark

2.0 STARTUP AND OPERATION

Check mark

Check true union nuts and/or flange connections

Check mark

Ensure flange bolts are tight enough to compress the gasket and make a good seal

Check mark

Verify no distortion or excessive stress on the flanges

Check mark

Confirm suitable washers are used between the bolt head and flange and the nut and flange

Check mark

Tighten bolts in alternating sequence

Check mark

Refer to Table 1 for recommended torque

Run this procedureArrow right
